Projects - Residential - Condominium Remodel
Click photo to see enlarged photo gallery.

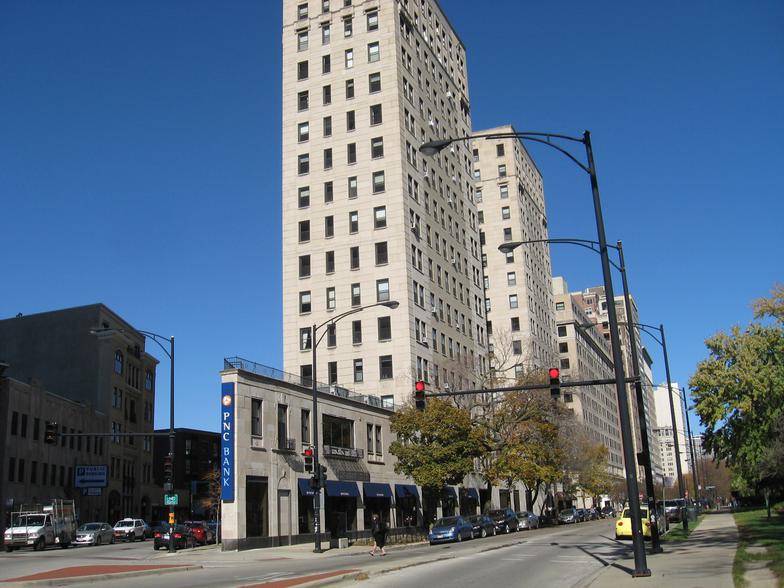

Building Exterior

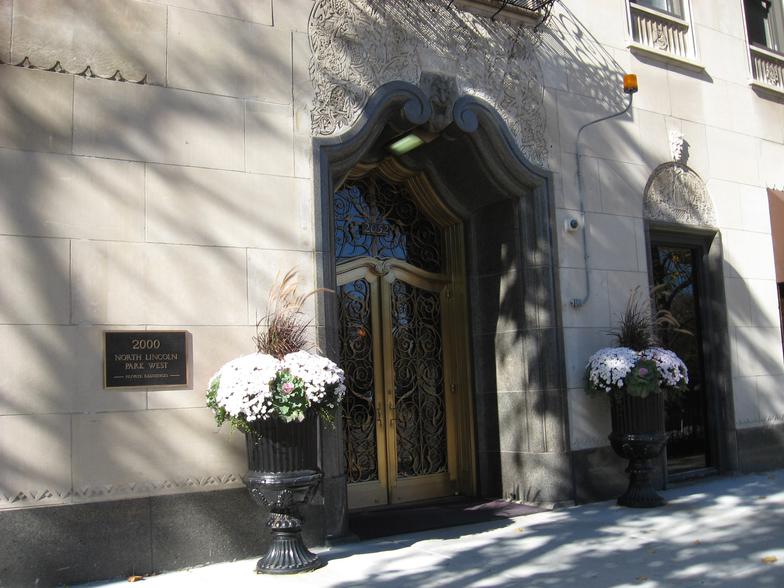

Building Entrance

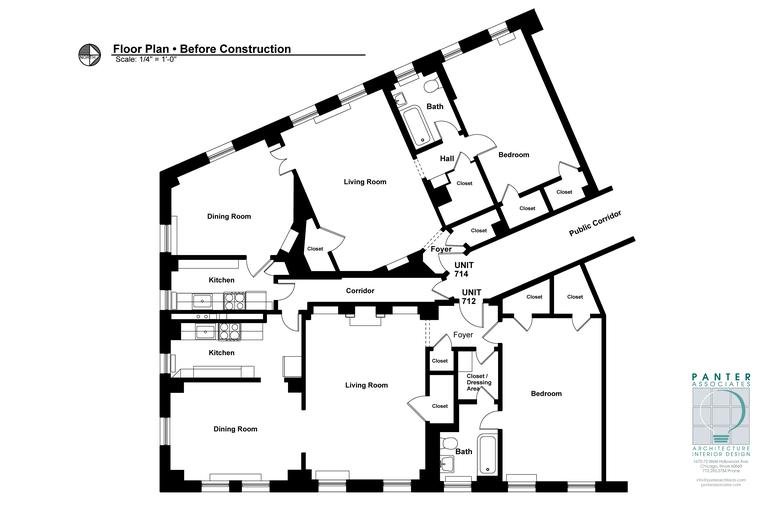

Floor Plan - Before Construction

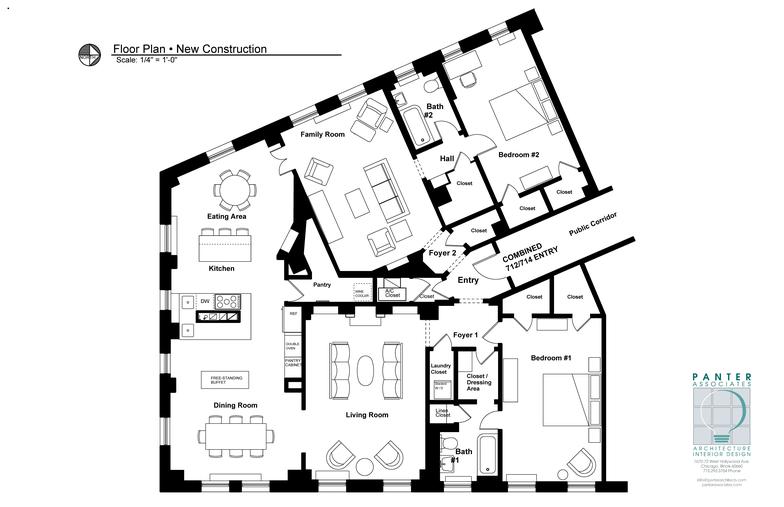

Floor Plan - New Construction

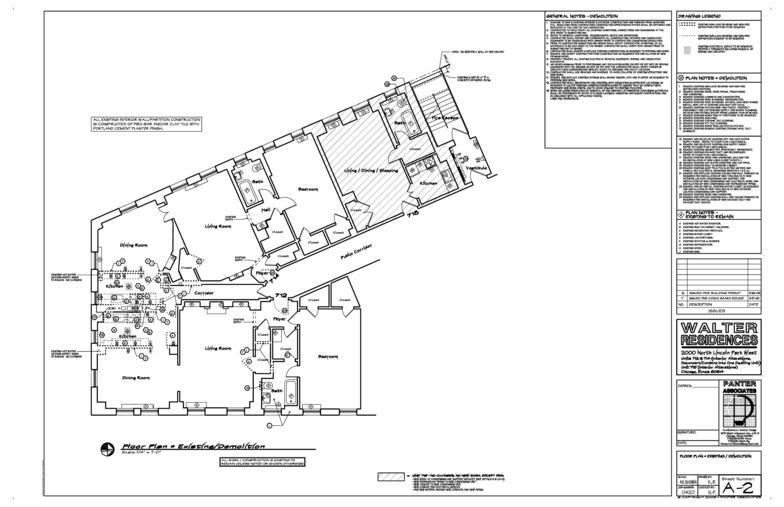

Construction Documents - Floor Plan - Existing / Demolition Plan, Sheet A-2

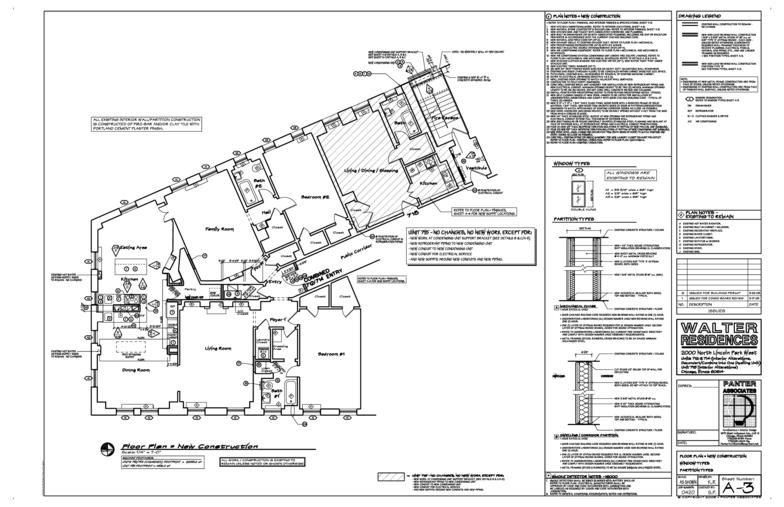

Construction Documents - Floor Plan - New Construction, Sheet A-3

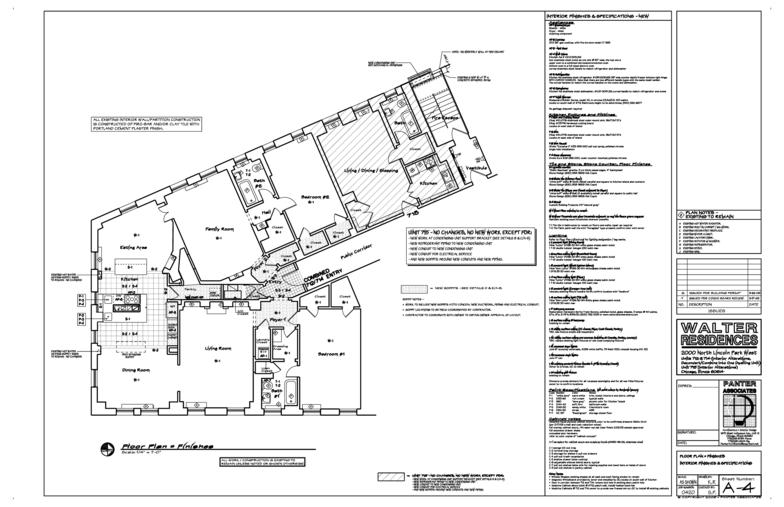

Construction Documents - Floor Plan - Finishes, Sheet A-4

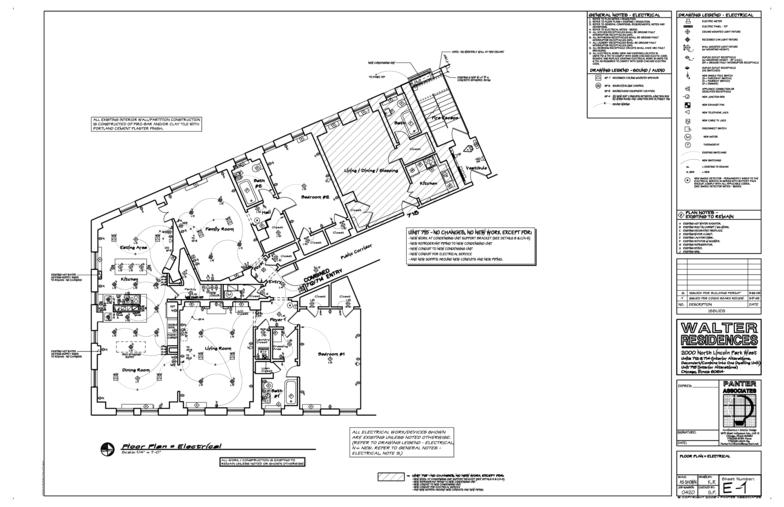

Construction Documents - Floor Plan - Electrical, Sheet E-1
 • Walter Residence - Interior remodel/alteration
     2000 North Lincoln Park West, Seventh Floor, Chicago, Illinois
• Extensive remodel/alterations to combine two, 1-bedroom, 1-bathroom condominium
   units into one, 2,150 square foot, 2-bedroom, 2-bathroom condominium located in
   16-story vintage (1931) building.
• New custom kitchen and new finishes throughout condominium.
• Create new entry foyer by extending the unit into the existing dead end public corridor.
• Convert existing dining room to eating area.
• Convert existing living room to family room.
• Alterations to adjacent studio condominium as required for new air conditioning system,
   and future condominium expansion (3rd-bedroom & 3rd-bathroom), etc.
• New high velocity (Unico) air conditioning system.
• Extensive electrical improvements (lighting, receptacles, etc.) throughout.
• New 200 amp electrical service including conduit and wire feed from the existing electrical
   switchgear located in basement to the condominium unit located on the seventh floor.
Building Exterior
Building Exterior
Building Exterior

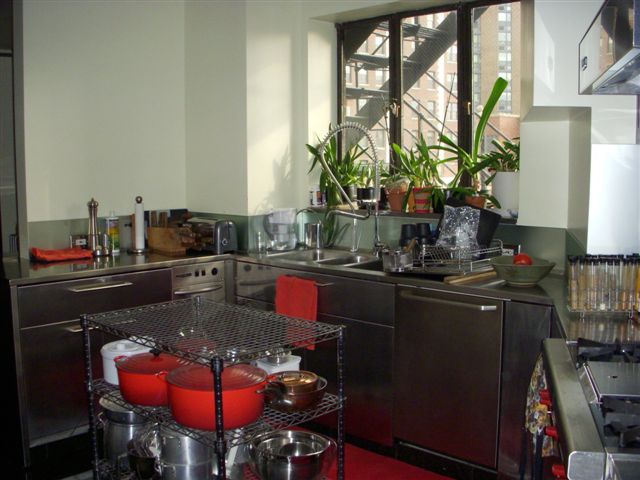

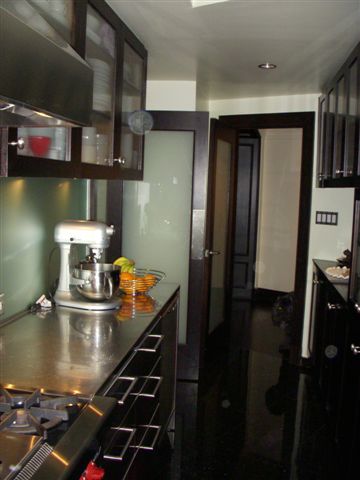

Kitchen
Kitchen
Kitchen / Butler's Pantry

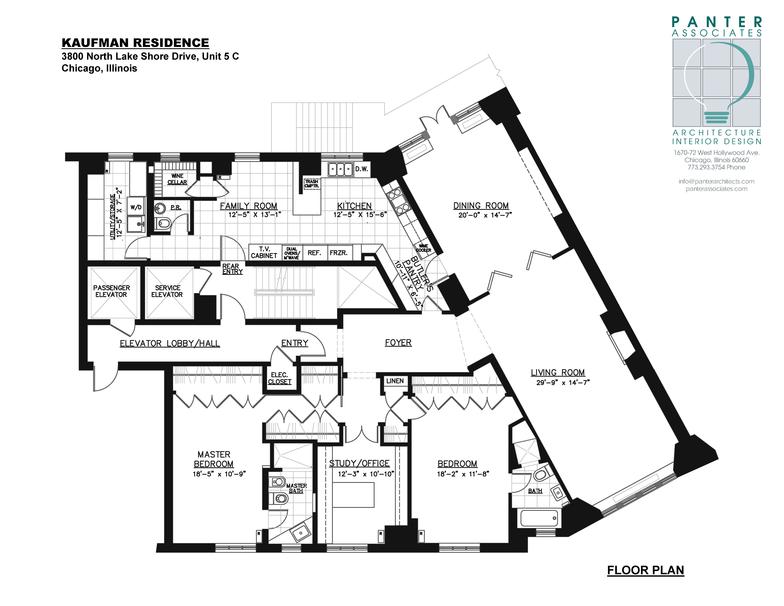

Floor Plan

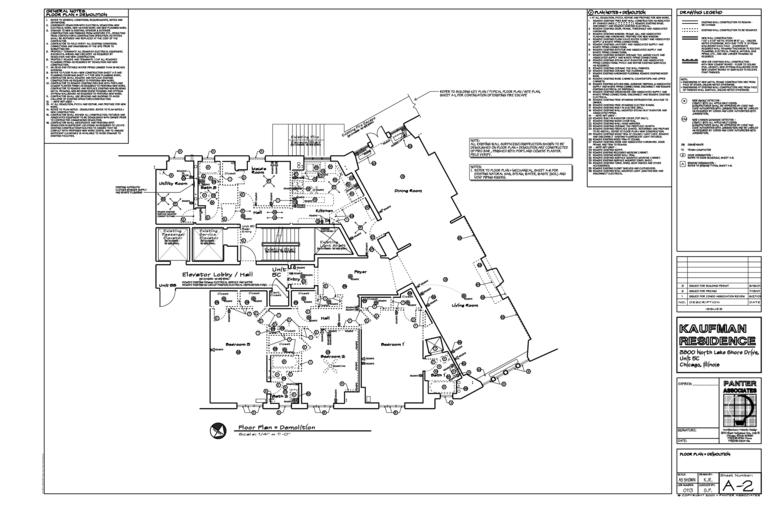

Construction Documents - Floor Plan - Demolition, Sheet A-2

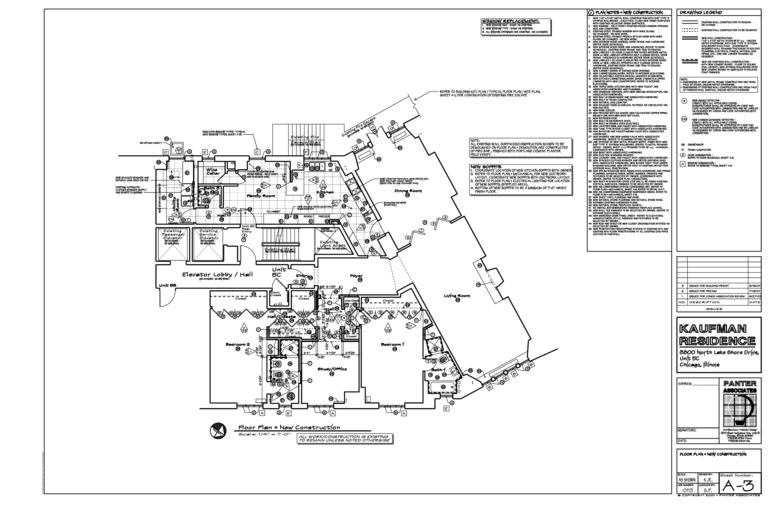

Construction Documents - Floor Plan - New Construction, Sheet A-3

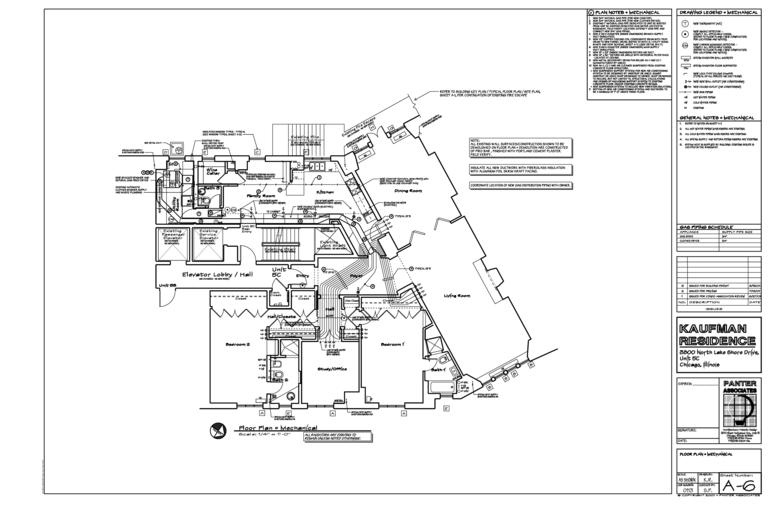

Construction Documents - Floor Plan - Mechanical, Sheet A-6

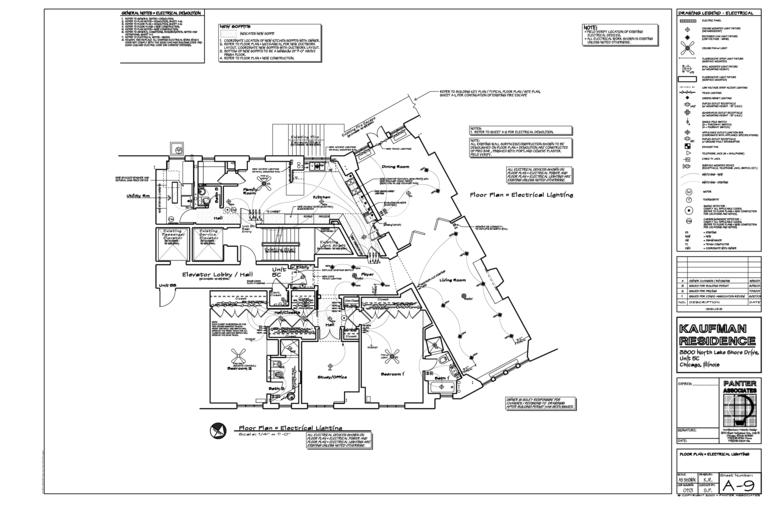

Construction Documents - Floor Plan - Electrical / Lighting, Sheet A-9
 • Kaufman Residence - Interior remodel/alteration, new windows
     3800 North Lake Shore Drive, Fifth Floor, Chicago, Illinois
• Extensive remodel/alterations to existing 4-bedroom, 3-bathroom, 2,516 square foot
   condominium located in 16-story vintage (1927) building.
• New custom kitchen with custom stainless steel faced cabinets, stainless steel countertops &
   backsplash and granite tile floor. Viking cooktop, Viking wall hood, Viking double electric oven,
   Sub-zero refrigerator, Sub-zero freezer, wine cooler and trash compactor.
• Convert existing maid's room (bedroom) to new family room open to remodeled kitchen.
• Convert existing bedroom to study.
• Expand master bedroom and bathroom.
• Convert existing bathroom to powder room and separate walk-in wine cellar.
• New bathroom fixtures and new custom finishes throughout condominium.
• New windows.
• New high velocity (Unico) air conditioning system.
• Replace all of the plumbing waste and supply piping located in the unit including distribution
   piping and main building risers.
• Extensive electrical improvements (lighting, receptacles, etc.) throughout.
• New 200 amp electrical service including conduit and wire feed from the existing electrical
   switchgear located in basement to the condominium unit located on the fifth floor.

Building Exterior

Building Exterior

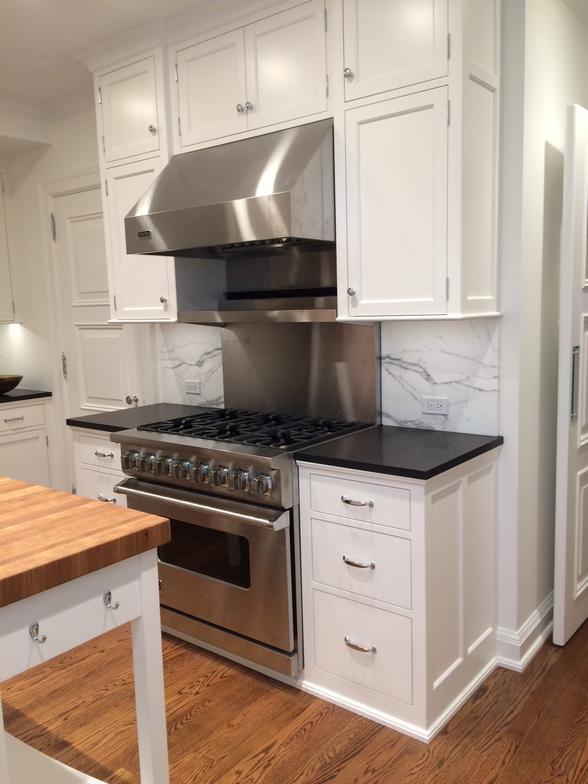

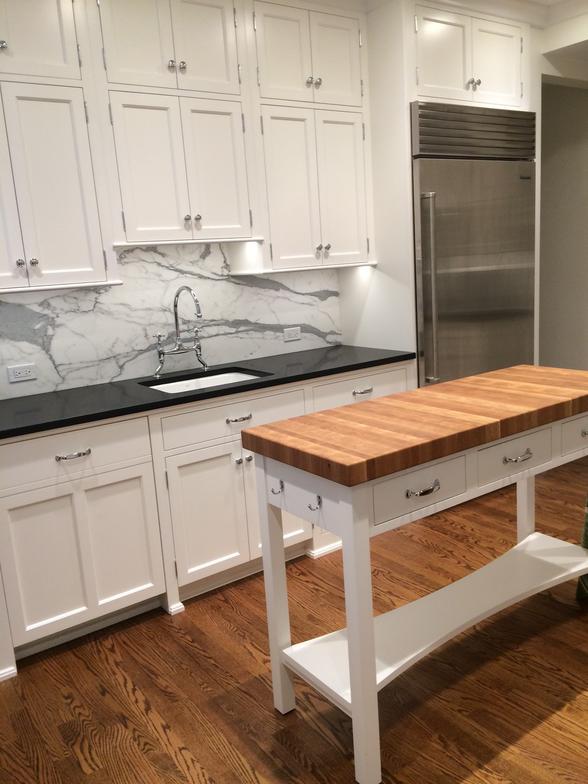

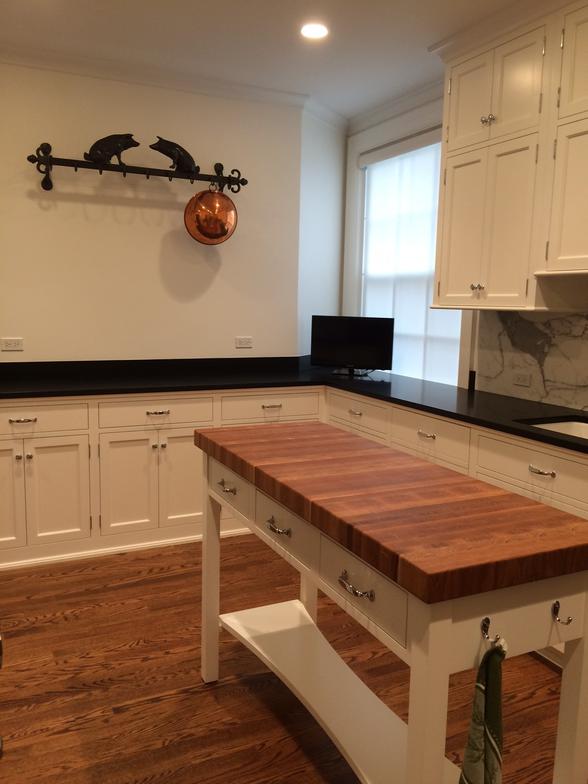

Kitchen

Kitchen

Kitchen

Kitchen

Kitchen

Kitchen

Kitchen

Kitchen

Kitchen

Kitchen / Pantry

Kitchen / Butler's Pantry

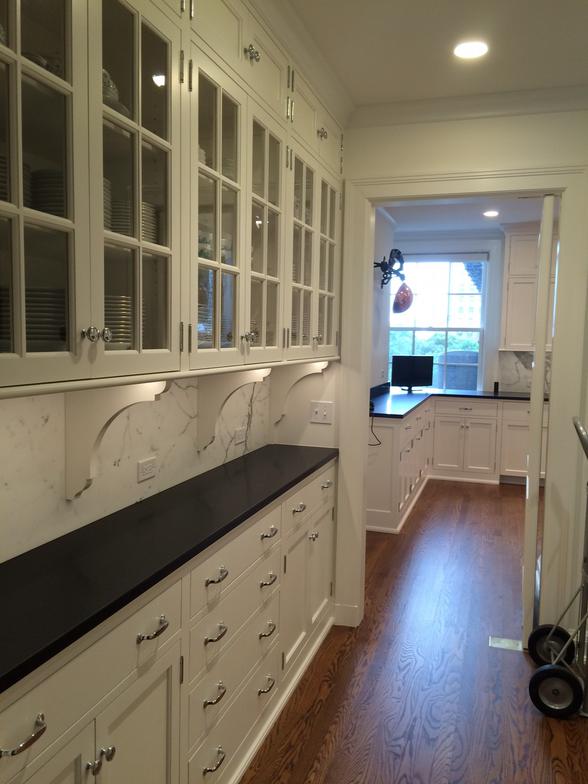

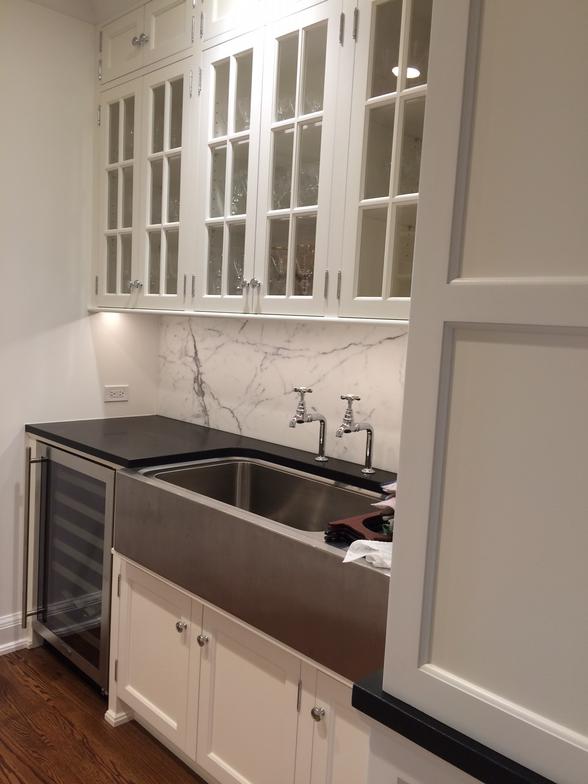

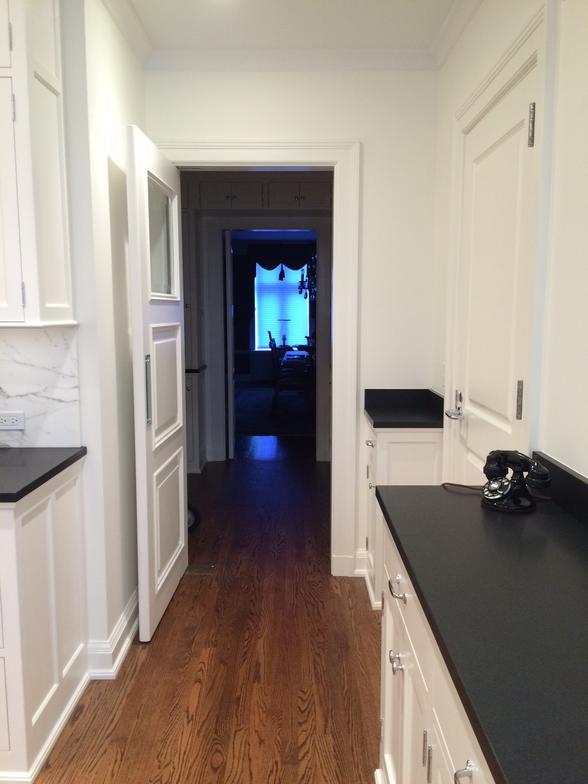

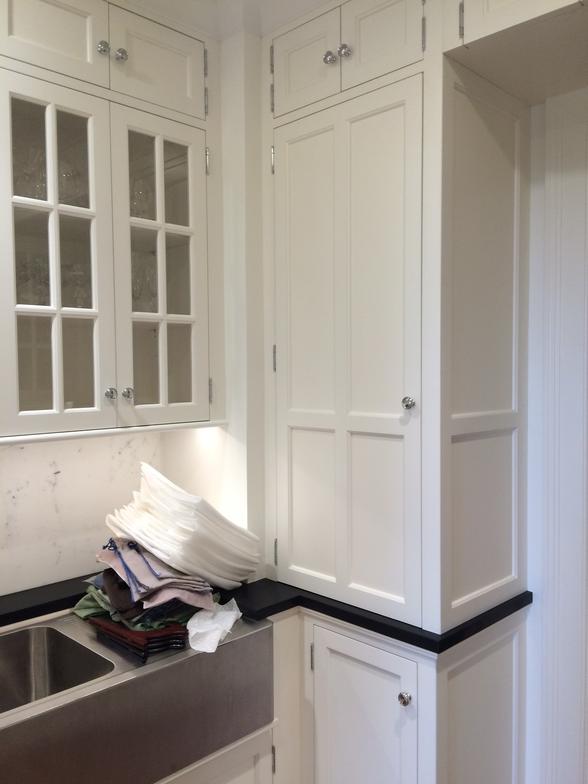

Butler's Pantry

Butler's Pantry

Butler's Pantry

Butler's Pantry

Butler's Pantry

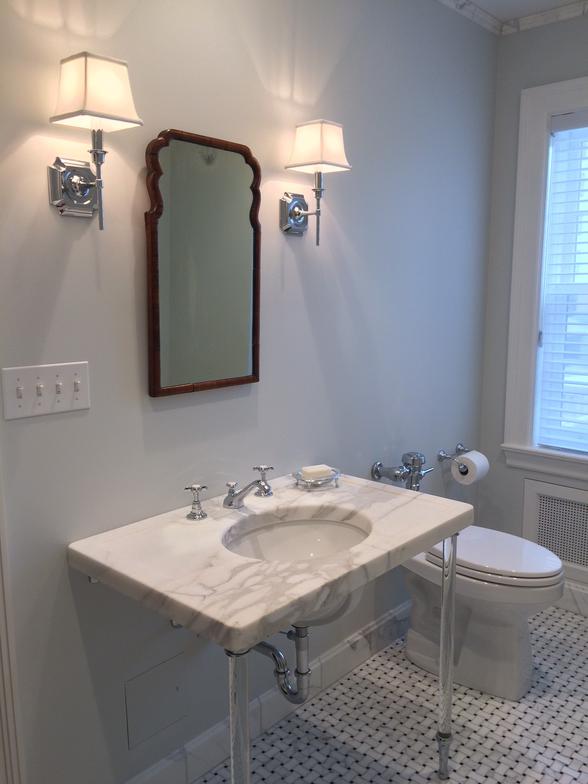

Guest Bathroom

Guest Bathroom

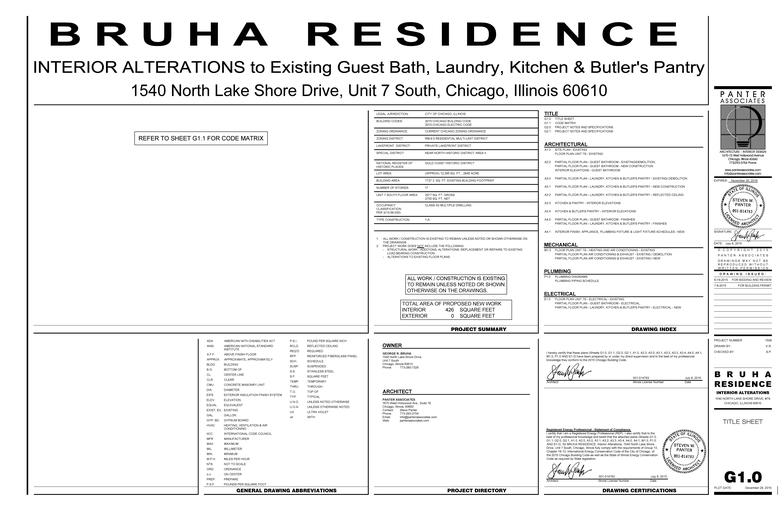

Title Sheet

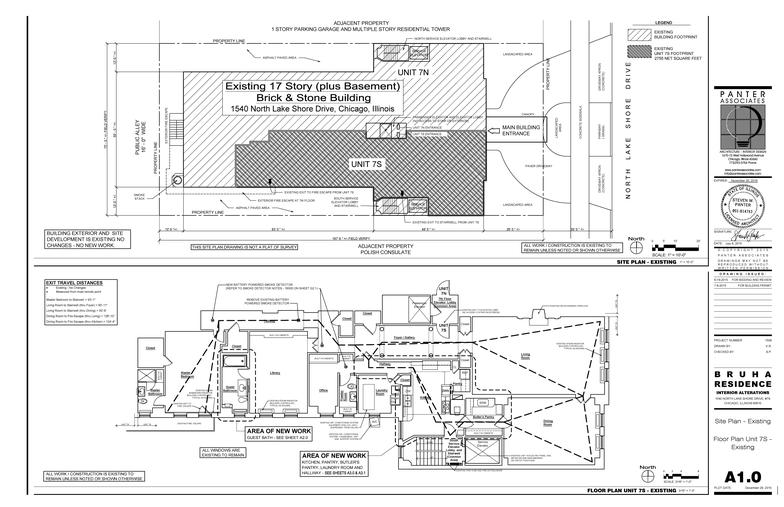

Site Plan - Existing,
Floor Plan - Existing

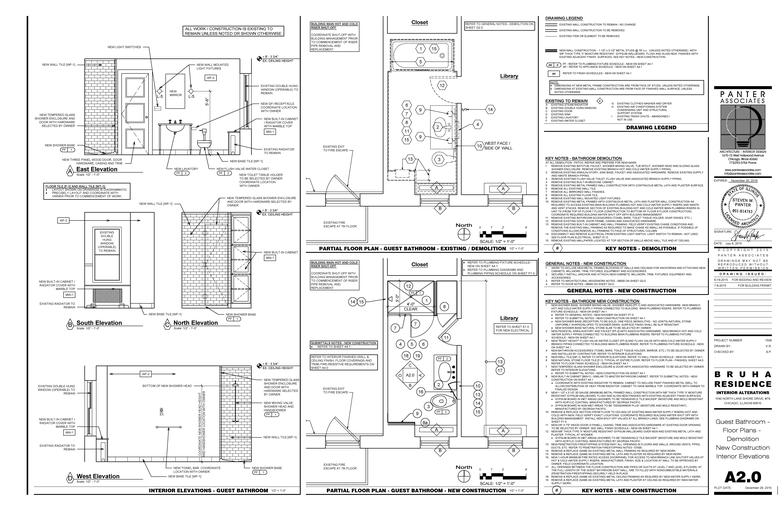

Guest Bathroom - Floor Plans - Demolition, New Construction, Interior Elevations

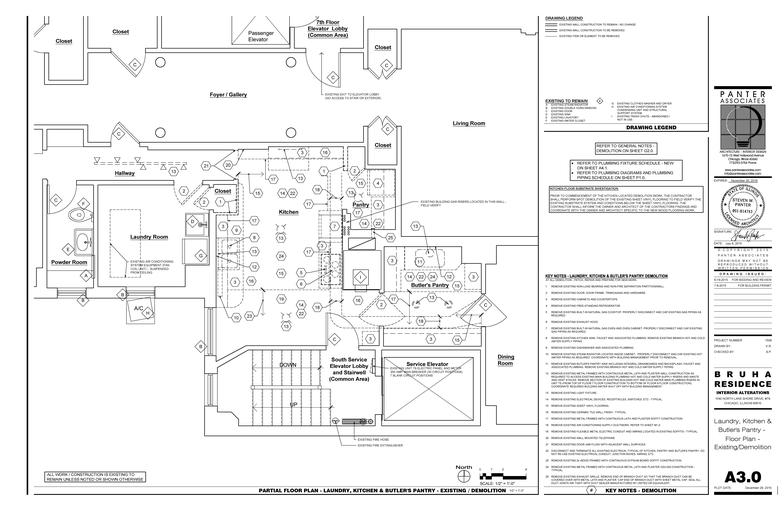

Laundry, Kitchen & Butler's Pantry - Floor Plan - Existing / Demolition

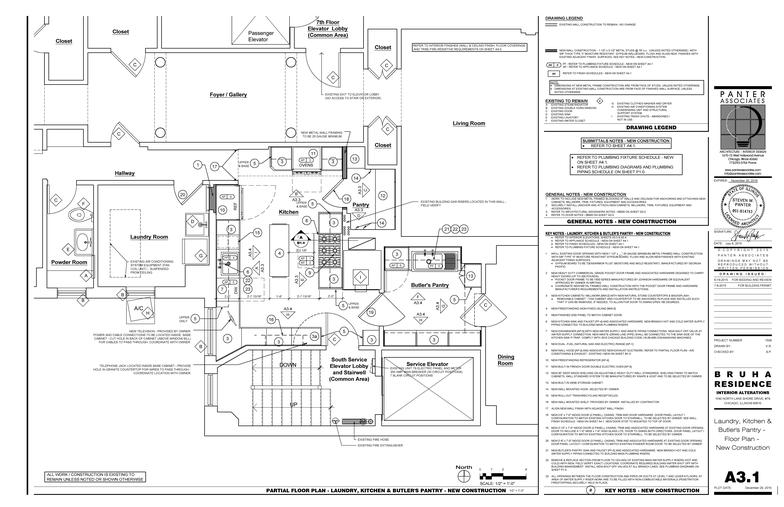

Laundry, Kitchen & Butler's Pantry - Floor Plan - New Construction

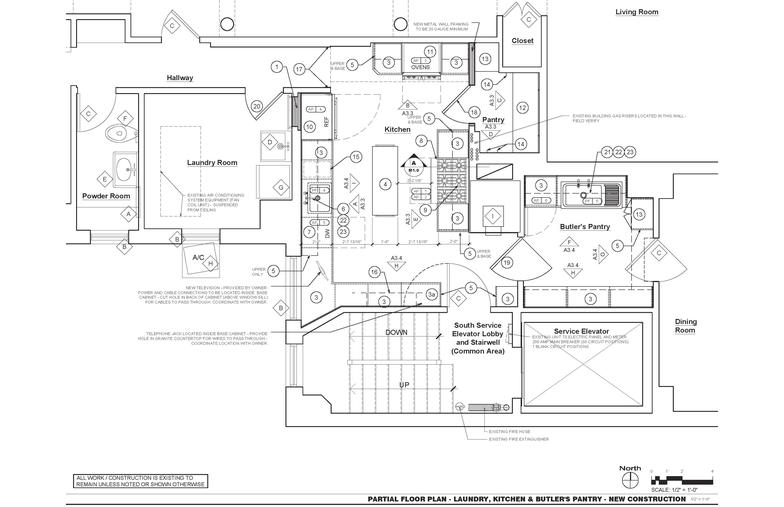

Enlarged Laundry, Kitchen & Butler's Pantry - Floor Plan - New Construction

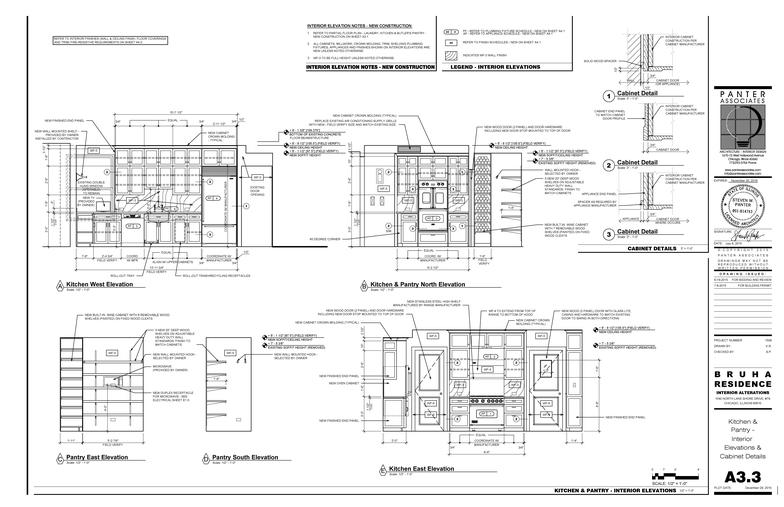

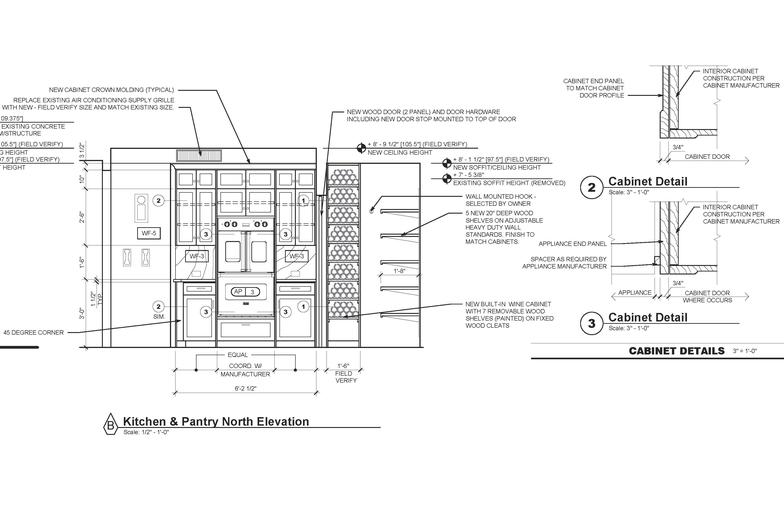

Kitchen & Pantry - Interior Elevations & Cabinet Details

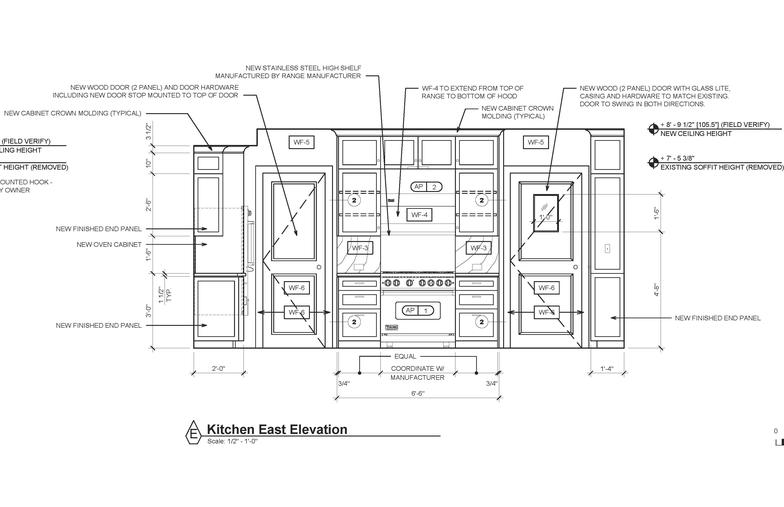

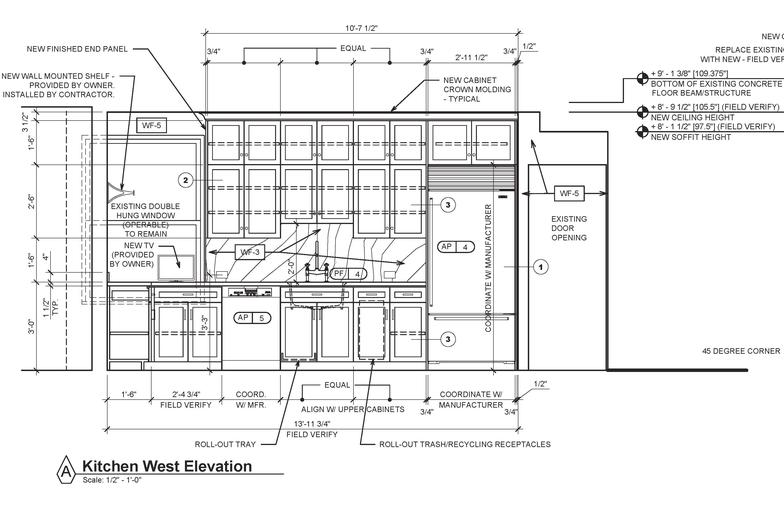

Enlarged Kitchen Elevation

Enlarged Kitchen Elevation, Cabinet Details

Enlarged Kitchen Elevation

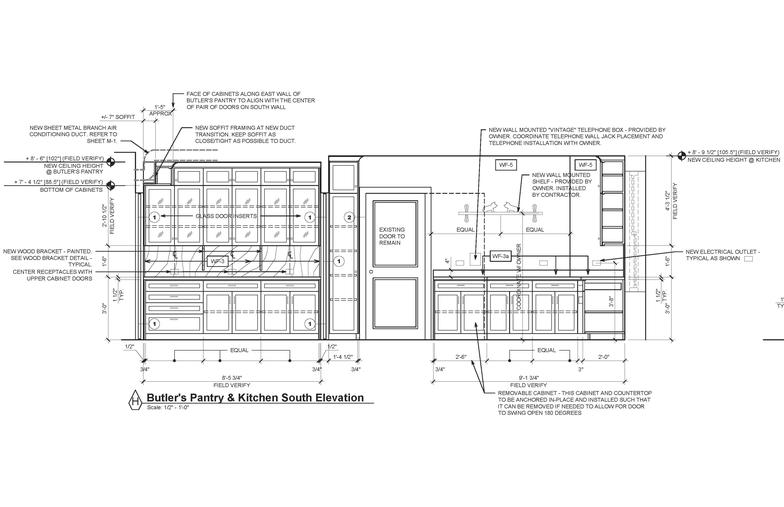

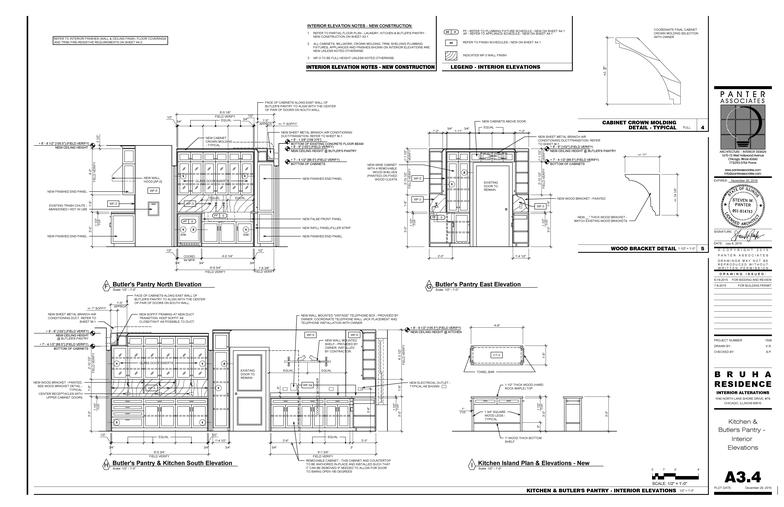

Kitchen & Butler's Pantry - Interior Elevations

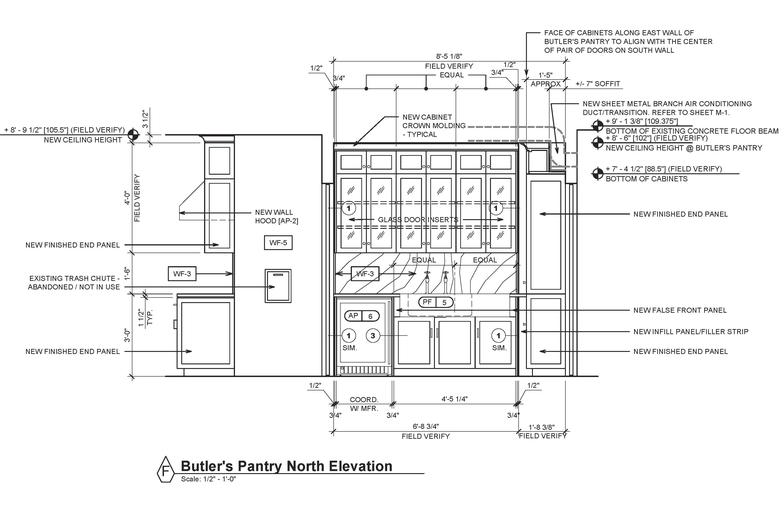

Enlarged Butler's Pantry Elevation

Enlarged Butler's Pantry & Kitchen Elevation

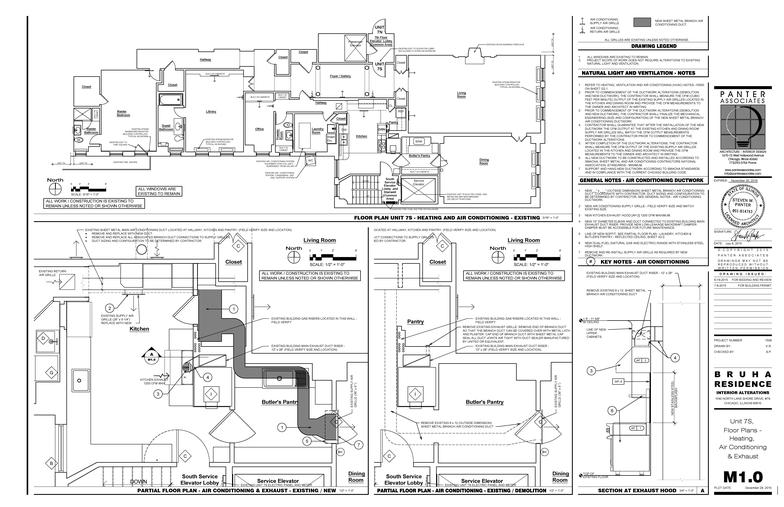

Floor Plans - Heating, Air Conditioning & Exhaust

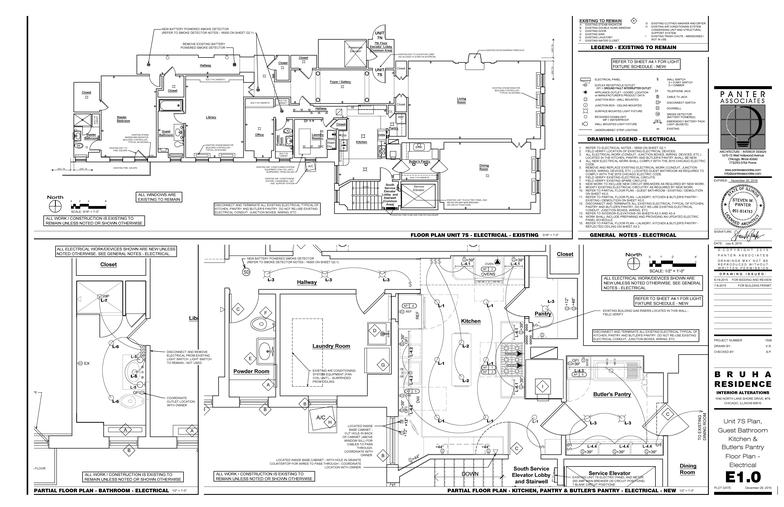

Guest Bathroom, Kitchen & Butler's Pantry Floor Plan - Electrical

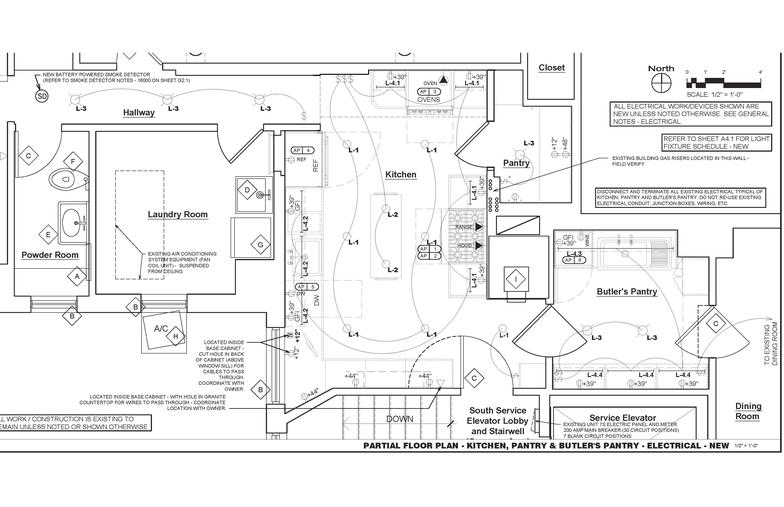

Enlarged Kitchen & Butler's Pantry Floor Plan - Electrical
 • Paszczyk Residence - Interior remodel/alteration
     400 East Randolph - Outer Drive East, Twenty-ninth Floor, Chicago, Illinois
• Extensive interior remodel/alterations to existing 1,925 square foot condominium with
   2 exterior balconies located in 40-story building constructed in 1963.
• Convert existing 1-bedroom condominium into a 2-bedroom condominium with new
   personal office / den.
• Reconfigure existing master bedroom suite, add new master bathroom, add new
   walk-in closet, add new personal office / den and other improvements.
• Reconfigure existing living room (reduce length) and add new bedroom.
• Reconfigure existing powder room to a full bathroom.
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
Before Construction
Before Construction
Before Construction
Before Construction
Before Construction
Before Construction
During Construction
During Construction
During Construction

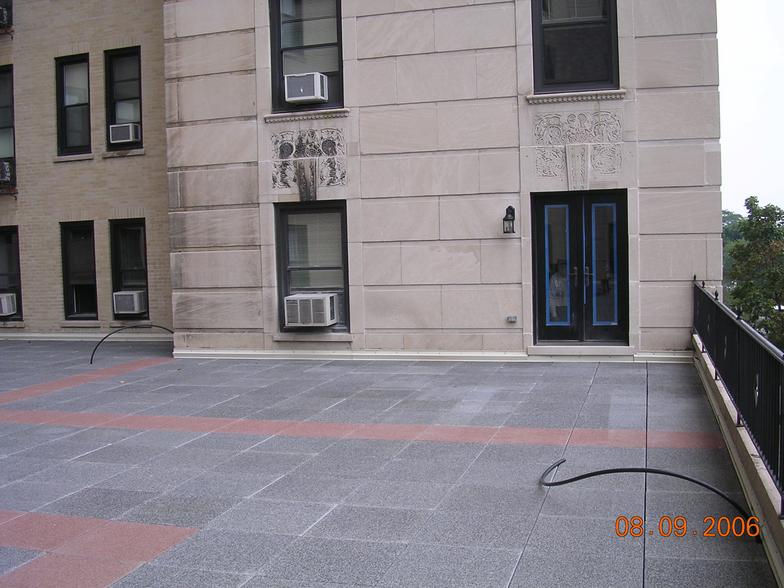

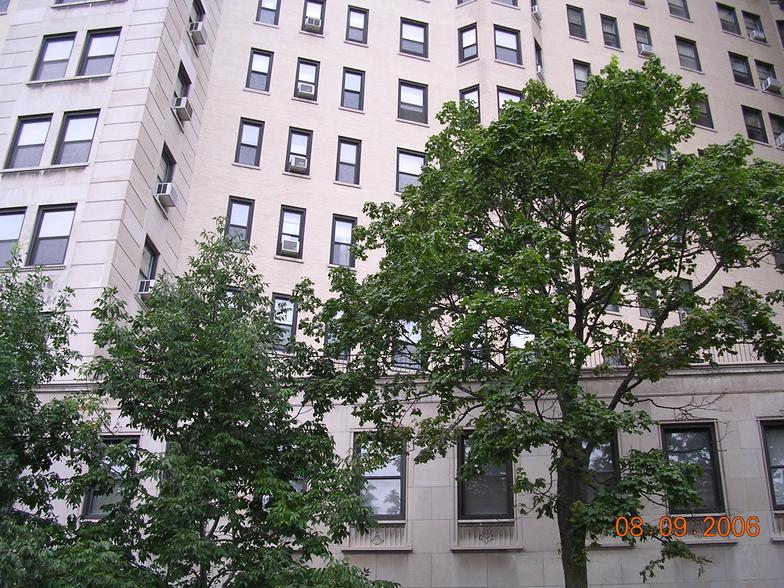

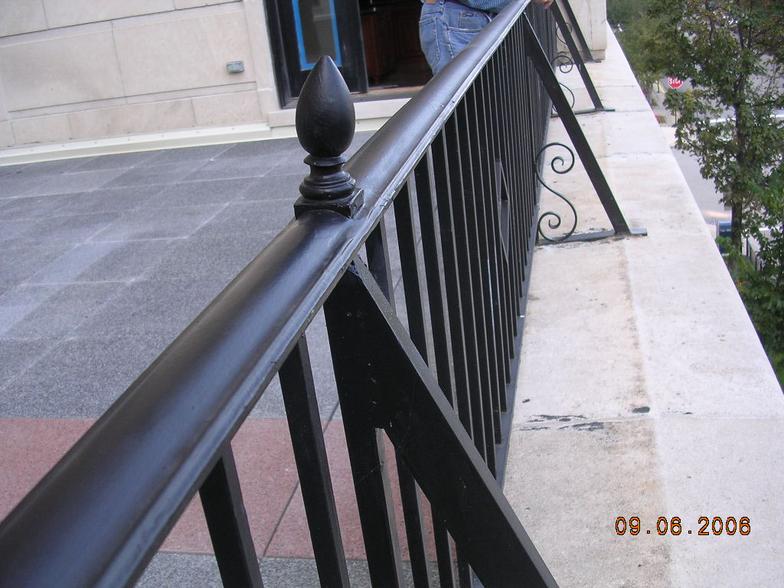

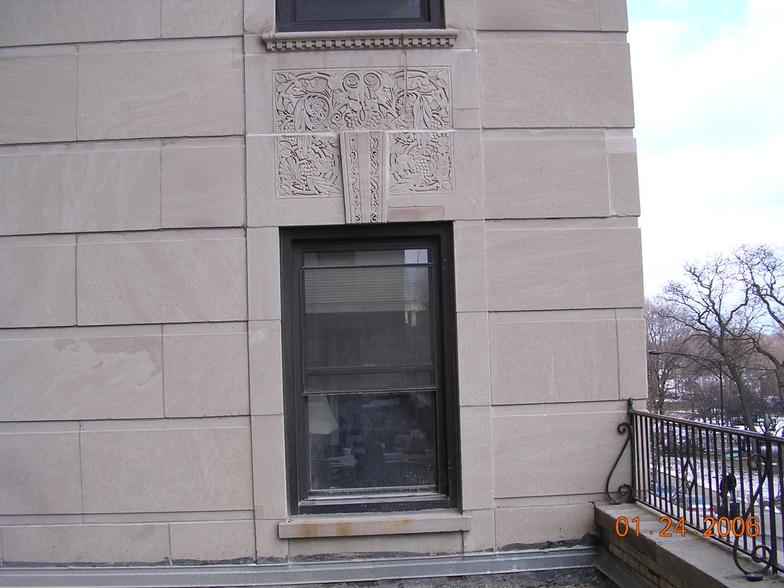

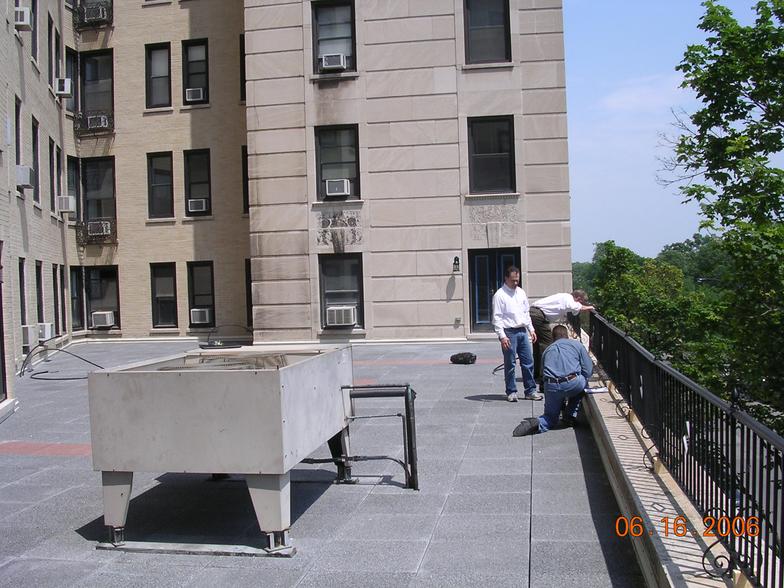

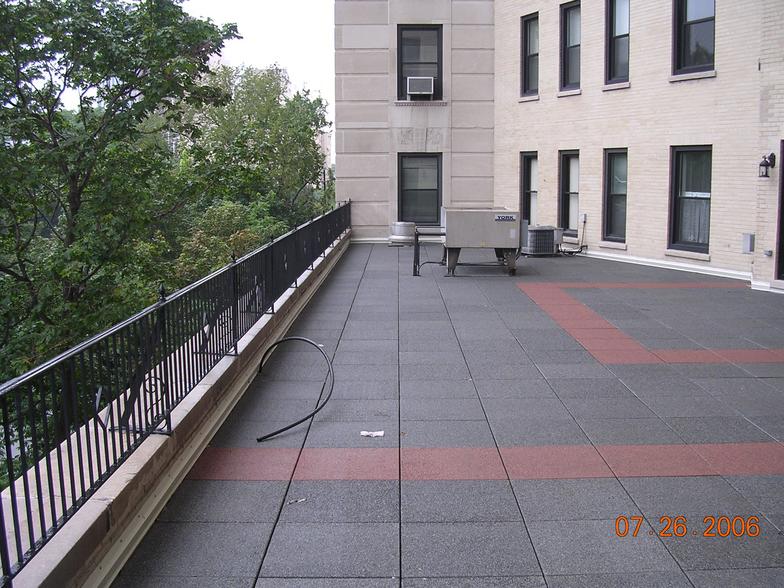

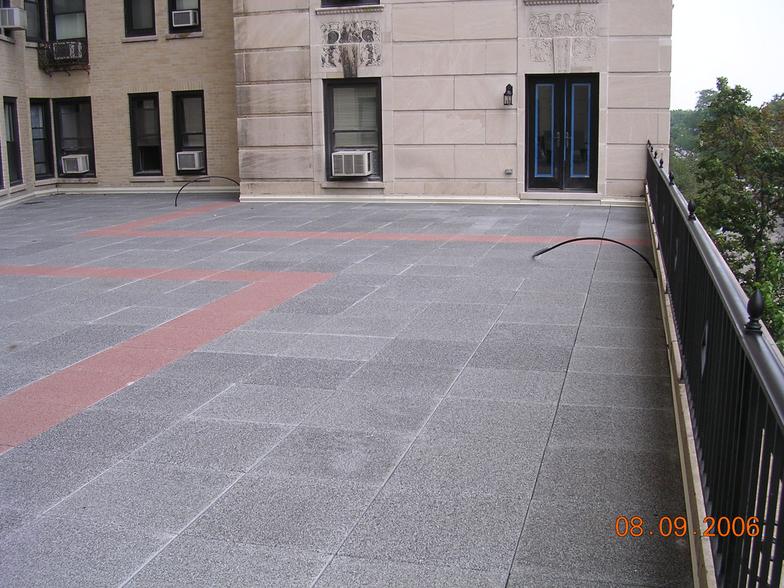

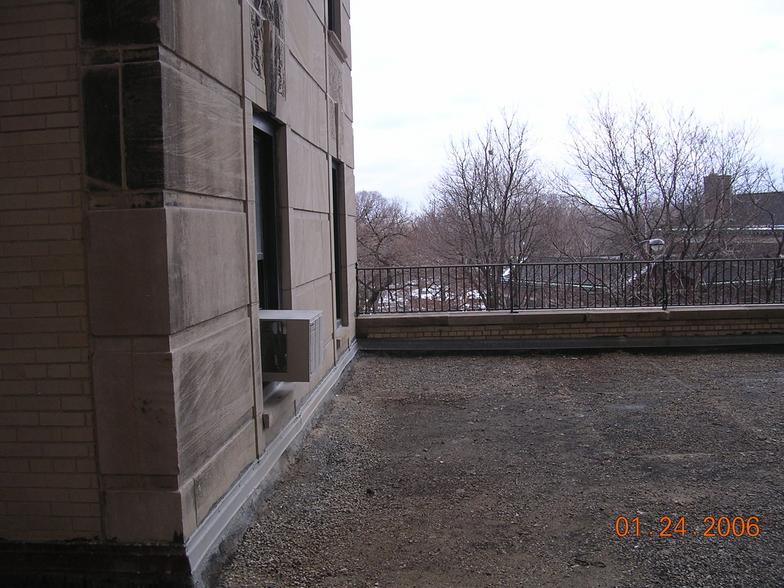

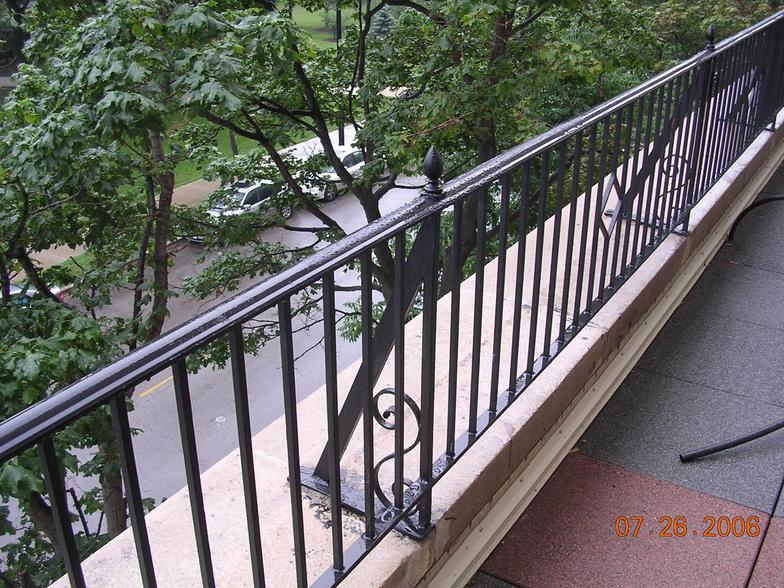

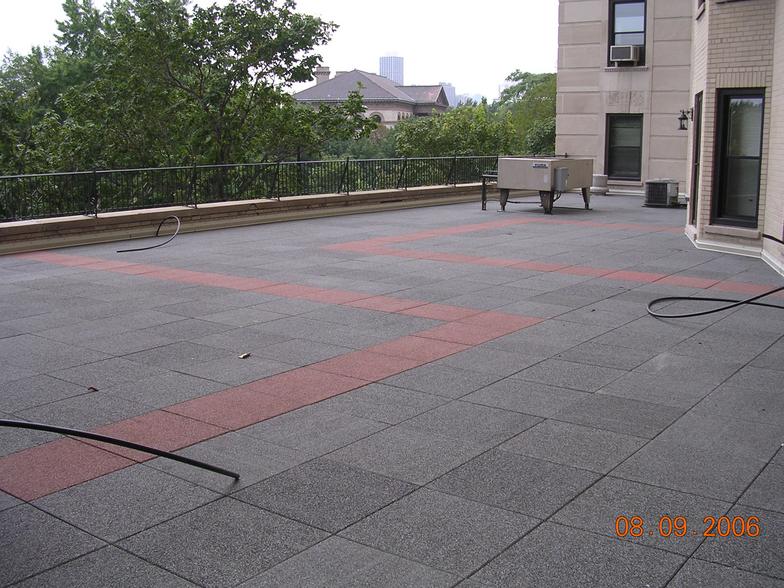

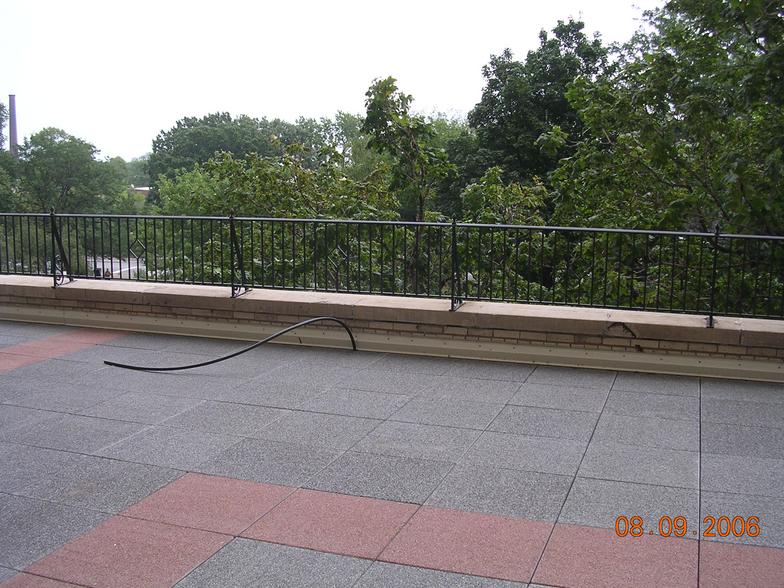

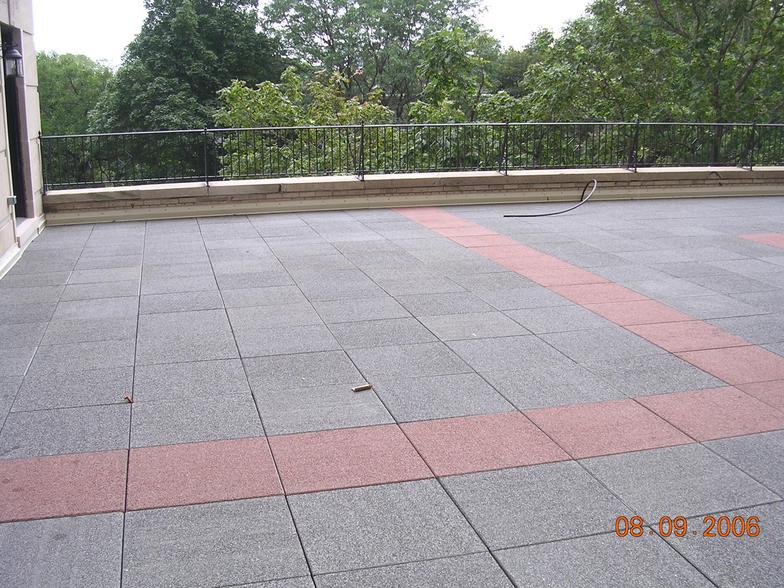

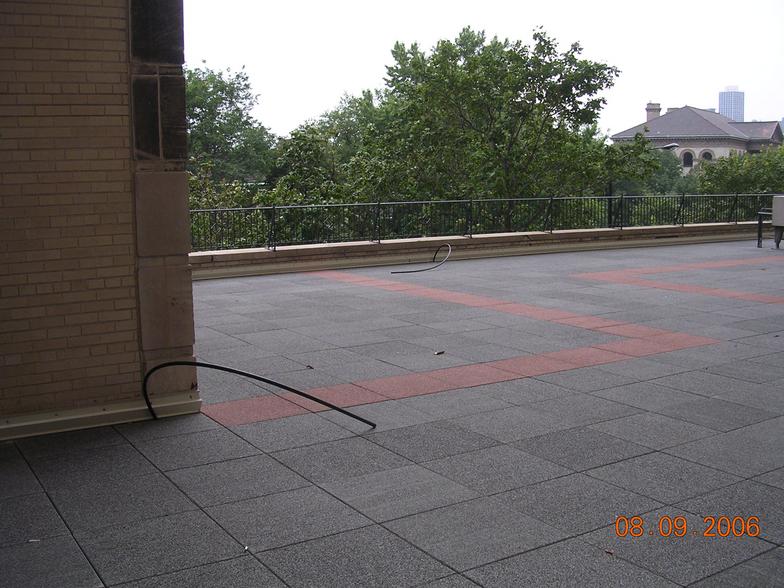

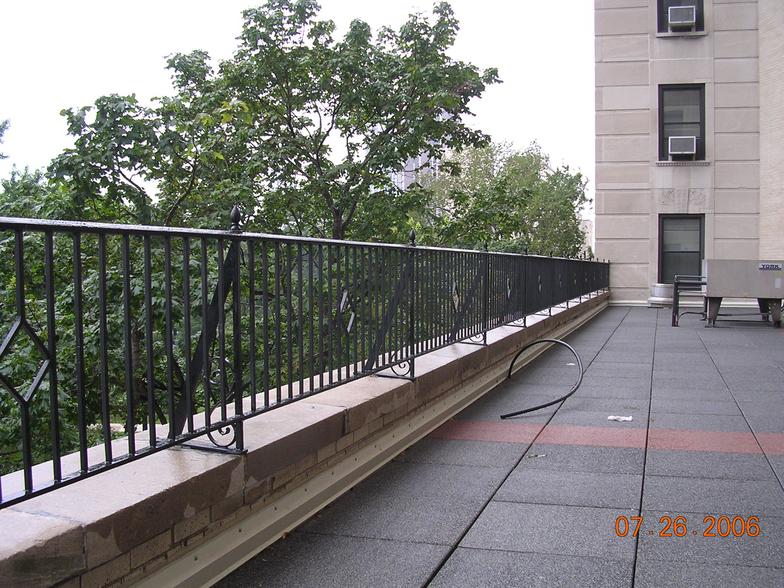

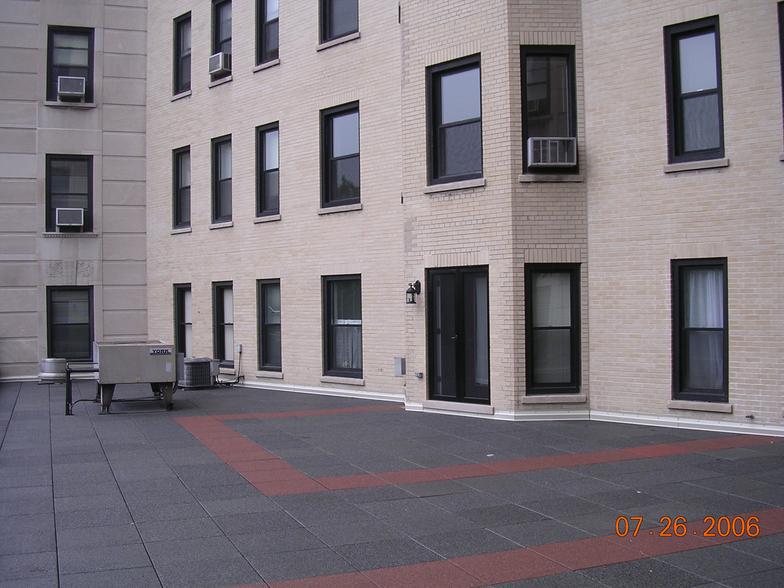

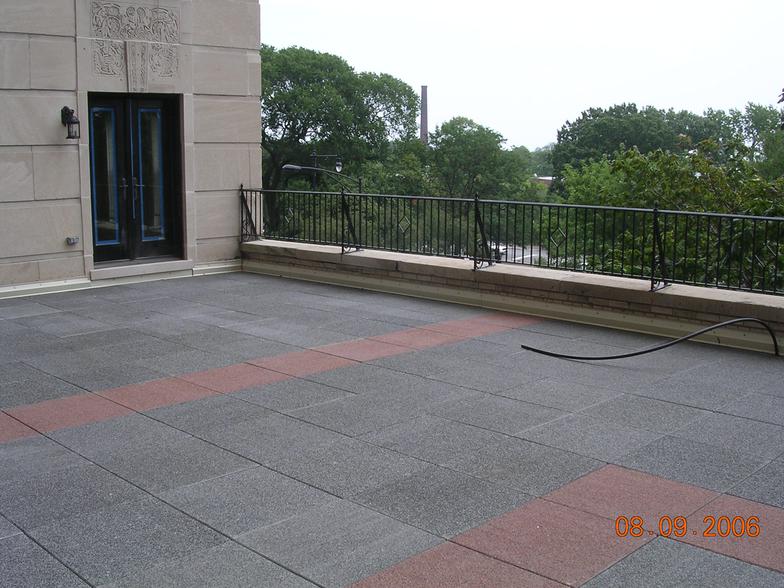

 • 2000 North Lincoln Park West Condominiums - New rooftop terrace
     2000 North Lincoln Park West, Chicago, Illinois
• Convert the existing rooftop area at 2-story portion of 16-story vintage (1931) building to a
   new rooftop terrace.

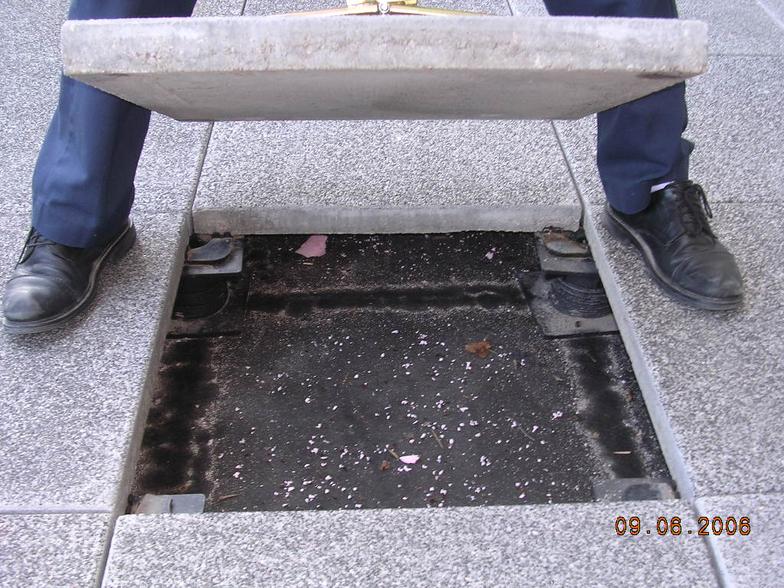

• New removable (unattached) roof top paver system including 24” x 24” pre-cast concrete
   pavers with adjustable supports over new roofing materials.
• Coordination with structural engineering consultant to verify the load capacity of the existing
   concrete slab roof construction and existing steel guard rail including structural testing and
   spot demolition to determine the structural system components, structural calculations, etc.

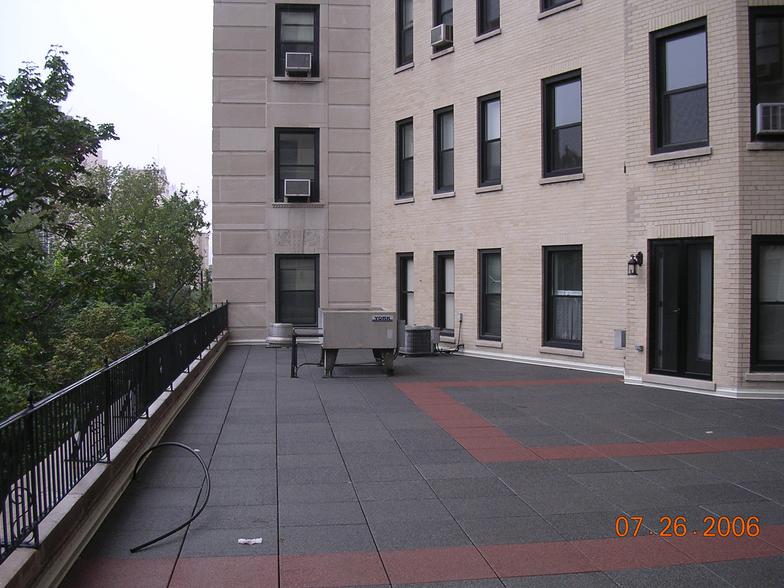

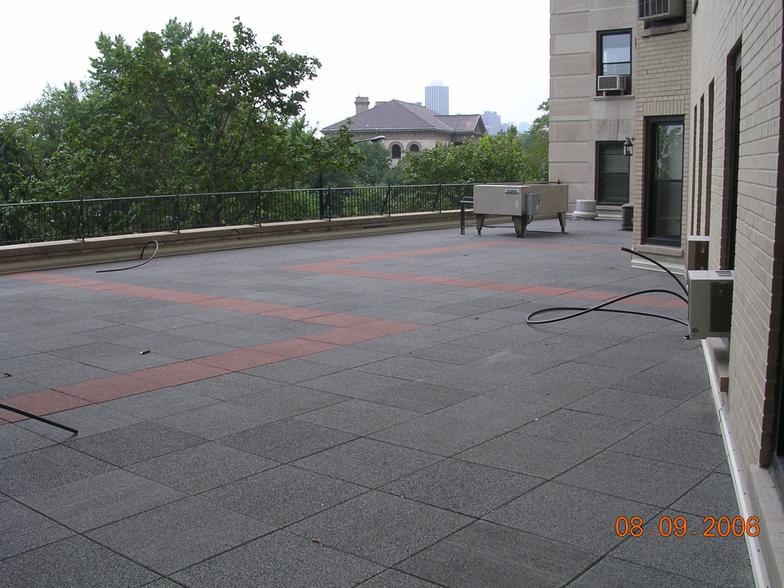

After Construction
After Construction
After Construction
After Construction
After Construction

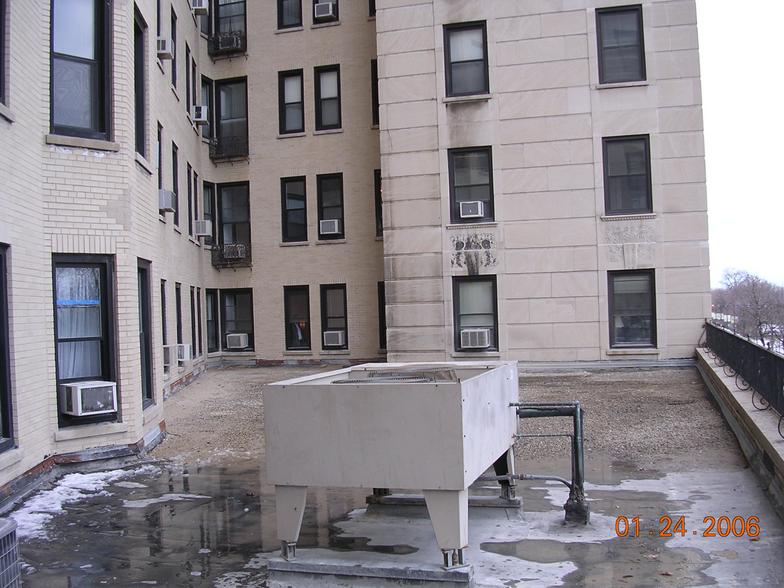

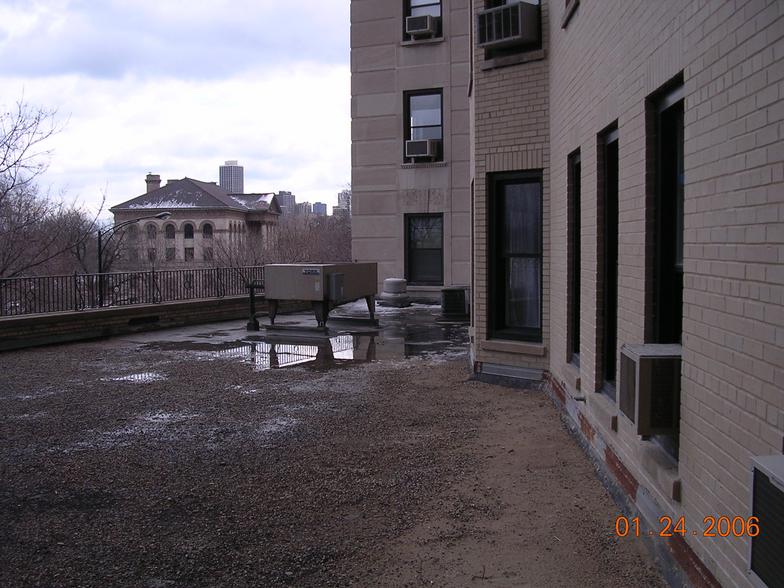

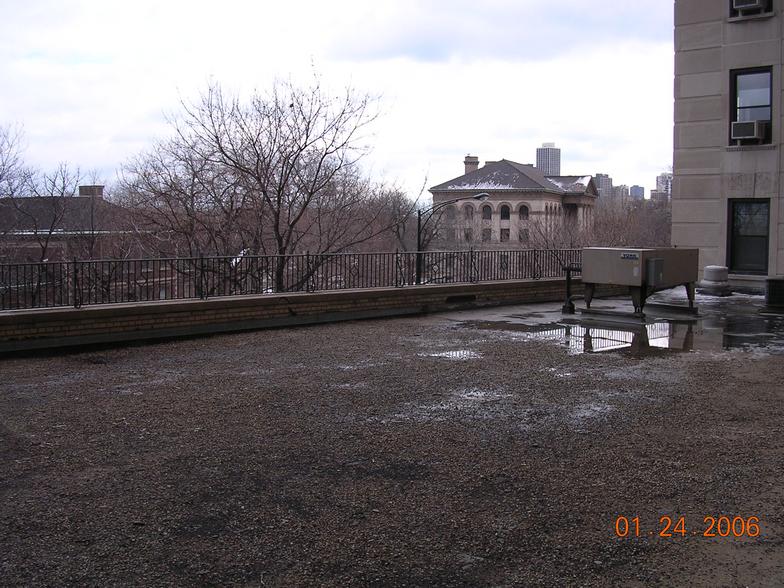

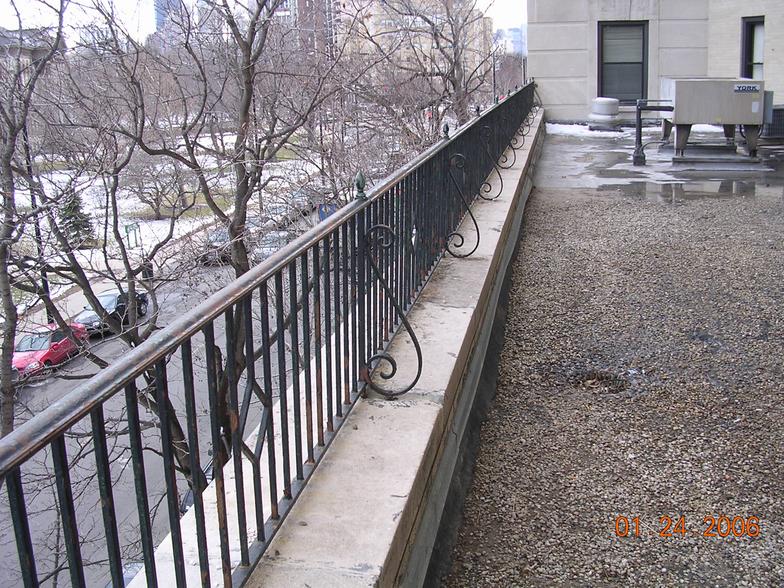

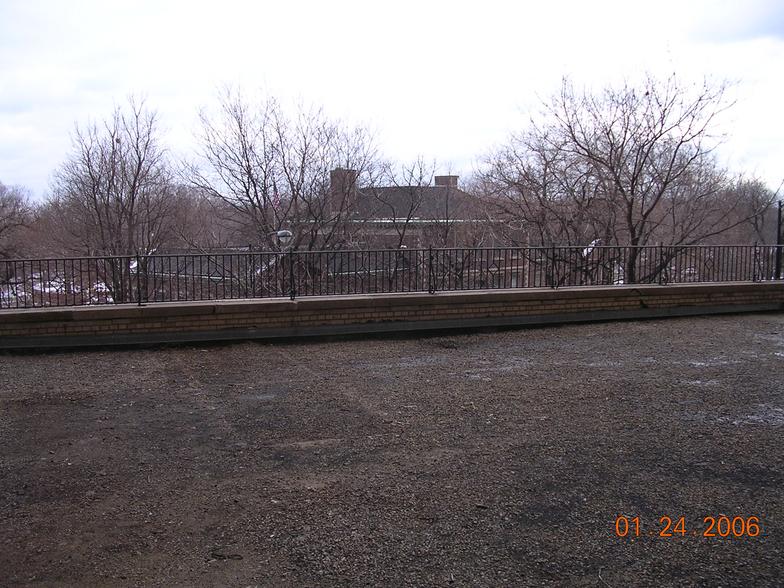

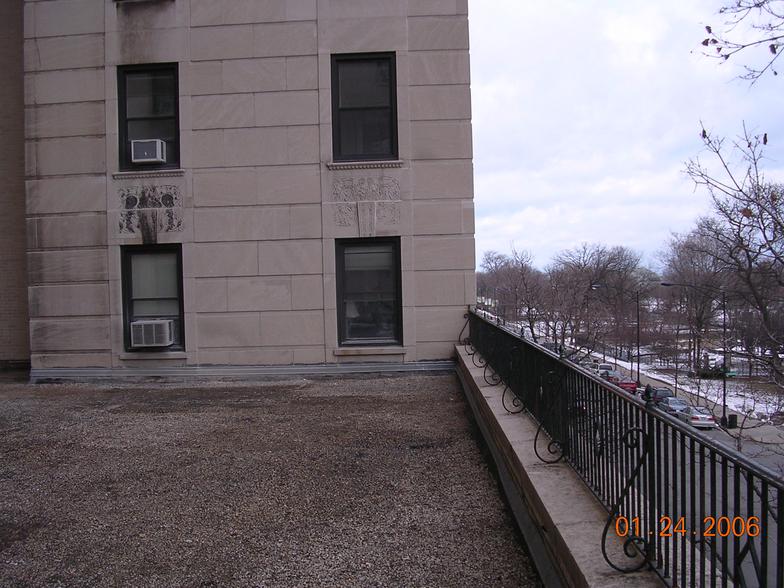

Before Construction
Before Construction
During Construction
During Construction
During Construction
 • 2000 North Lincoln Park West - Unit 302 - New private rooftop terrace and new terrace entry
     2000 North Lincoln Park West, Chicago, Illinois
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction
After Construction

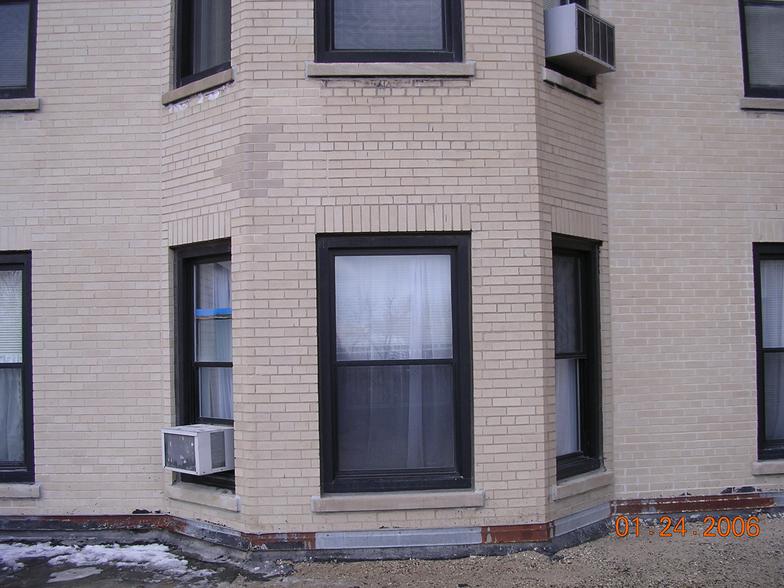

Before Construction
Before Construction
• New 336 square foot (24’ x 14’) rooftop terrace located at the rooftop area at 2-story portion
   of 16-story vintage (1931) building.

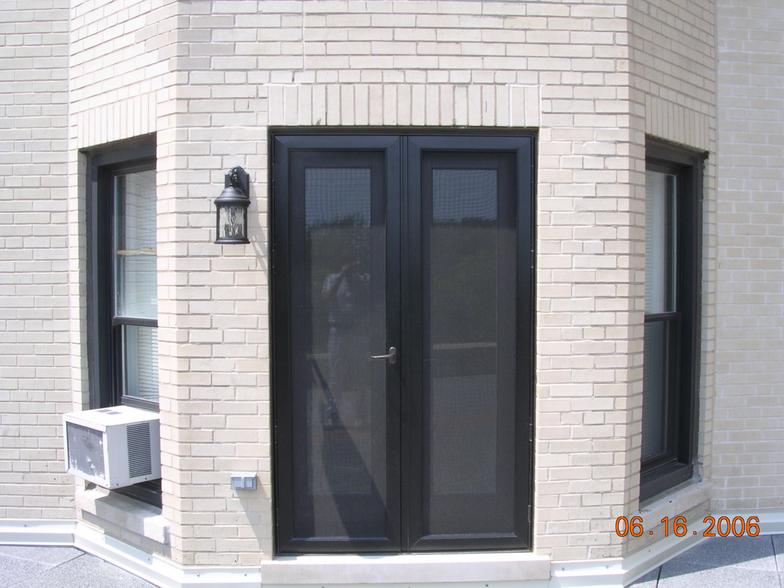

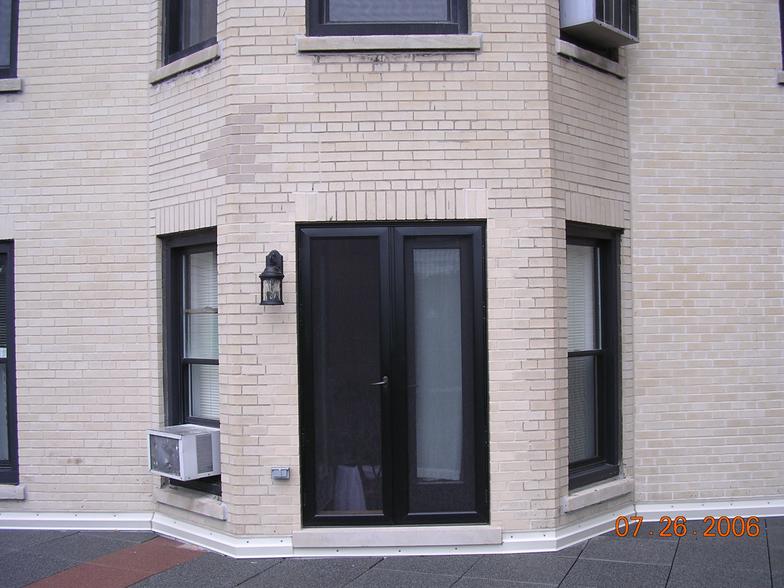

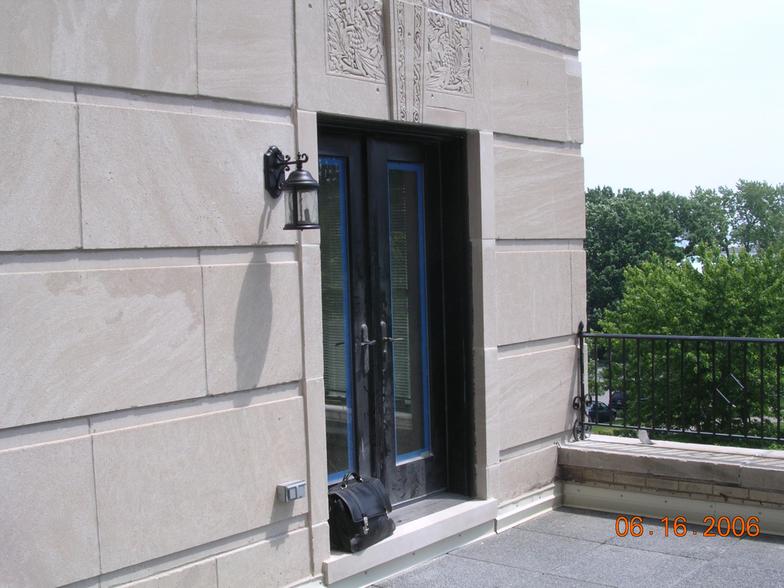

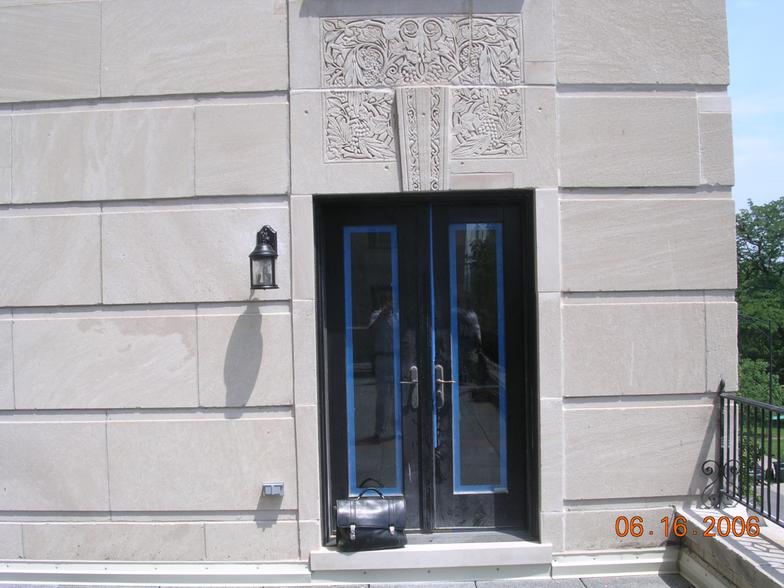

• Remove existing window and masonry wall construction for new french door entry from the
   condominium to the terrace.
• New french door and new interior steps at the new french door.

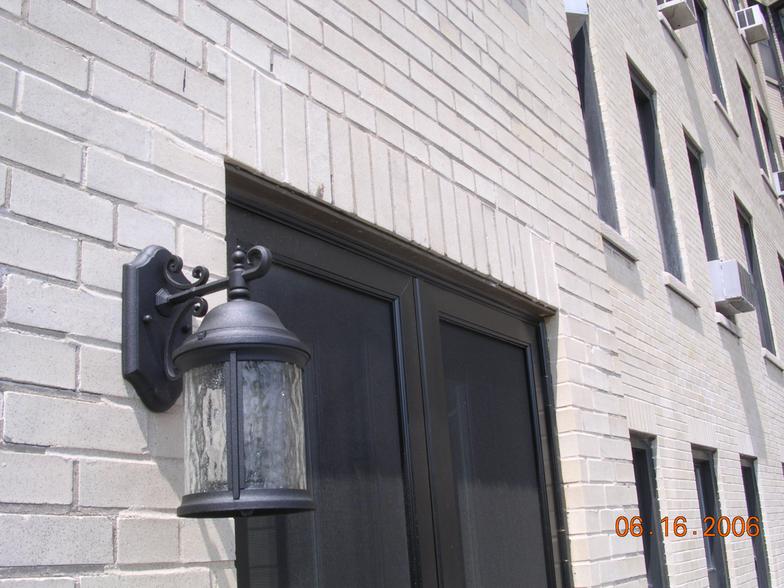

• New exterior lighting.
 • 2000 North Lincoln Park West - Unit 308 - New private rooftop terrace and new terrace entry
     2000 North Lincoln Park West, Chicago, Illinois
• New 336 square foot (24’ x 14’) rooftop terrace located at the rooftop area at 2-story portion
   of 16-story vintage (1931) building.
• Remove existing window and masonry wall construction for new french door entry from the
   condominium to the terrace.
• New french door and new interior steps at the new french door.
• New exterior lighting.

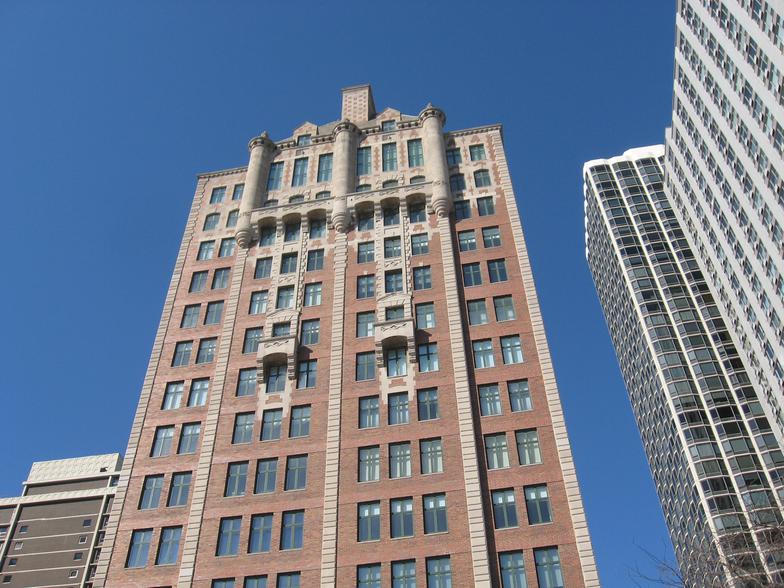

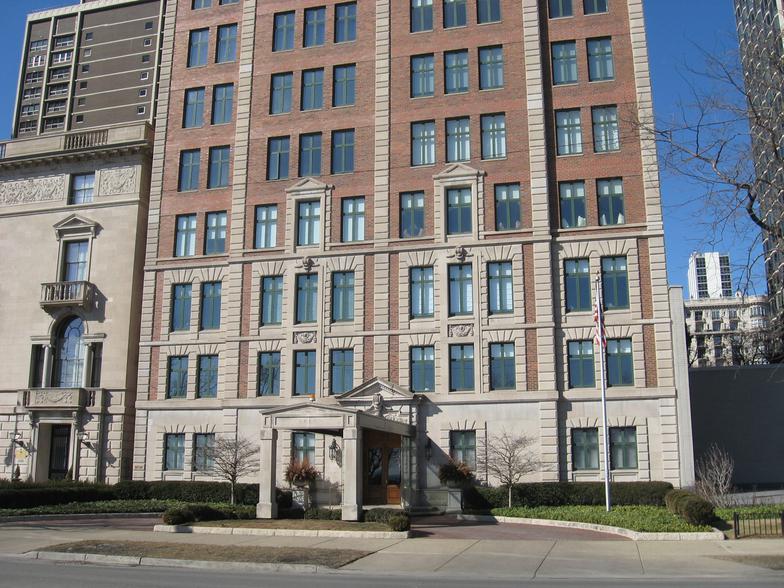

Building Exterior

Building Exterior

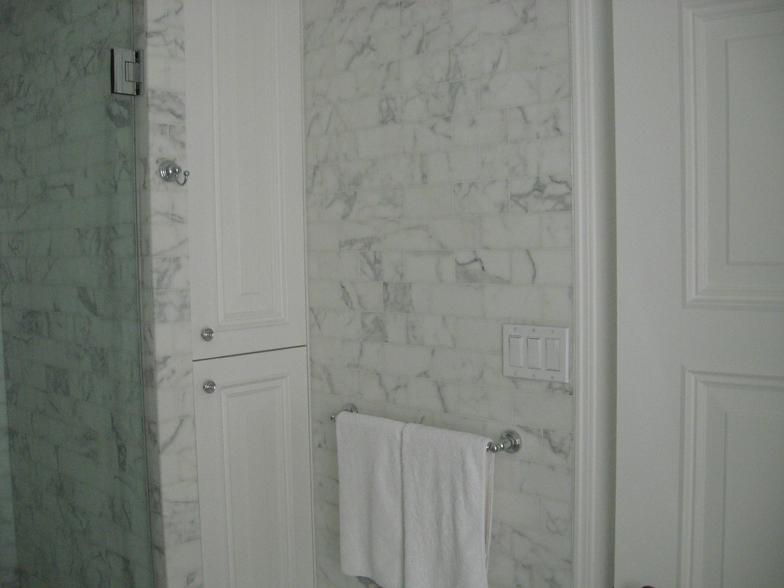

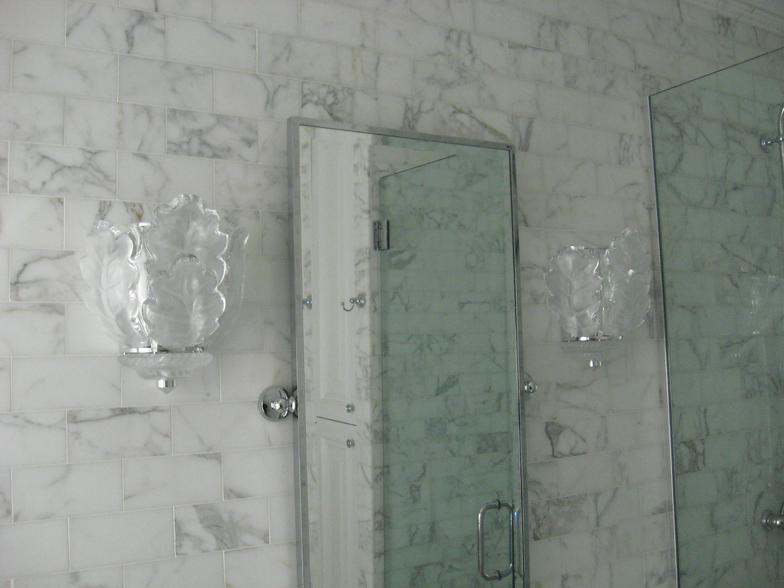

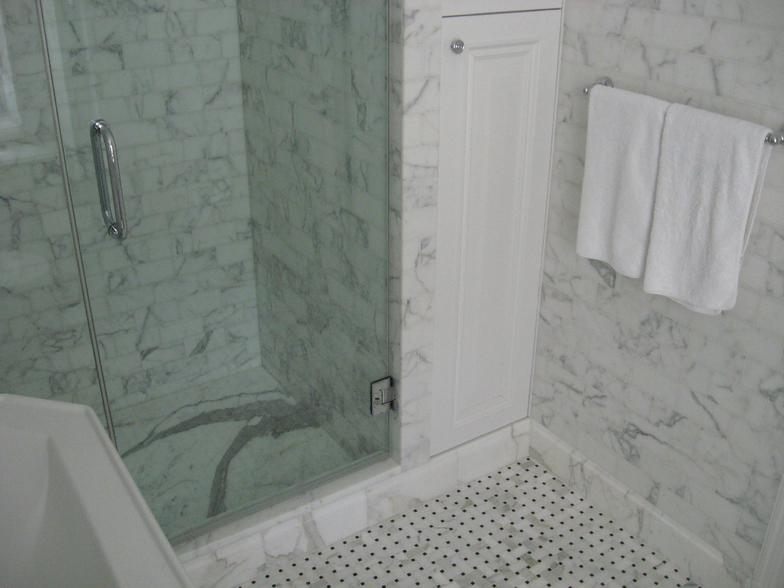

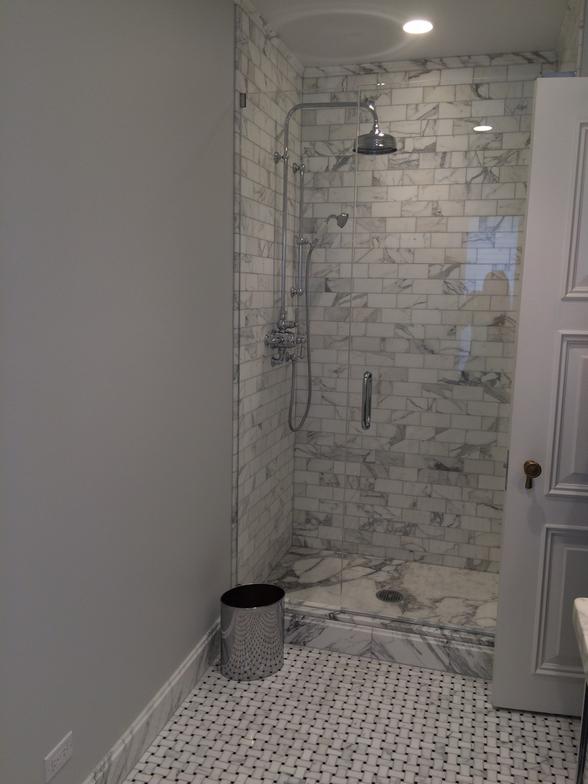

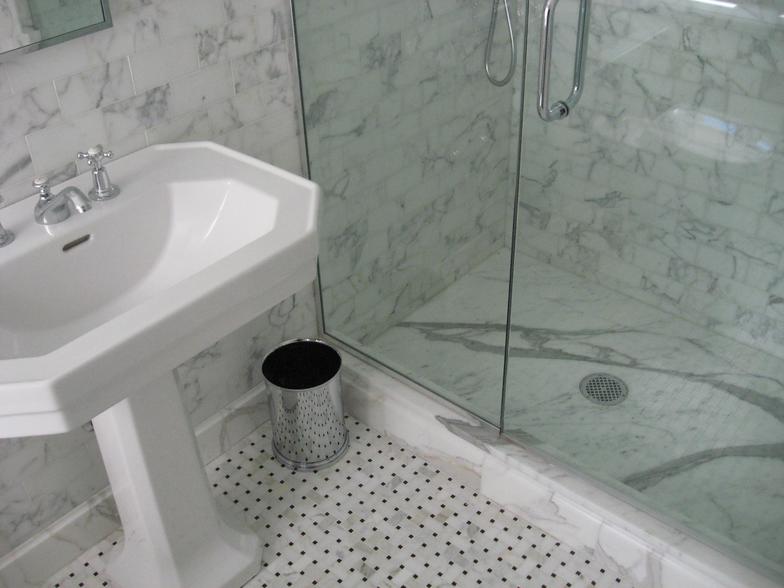

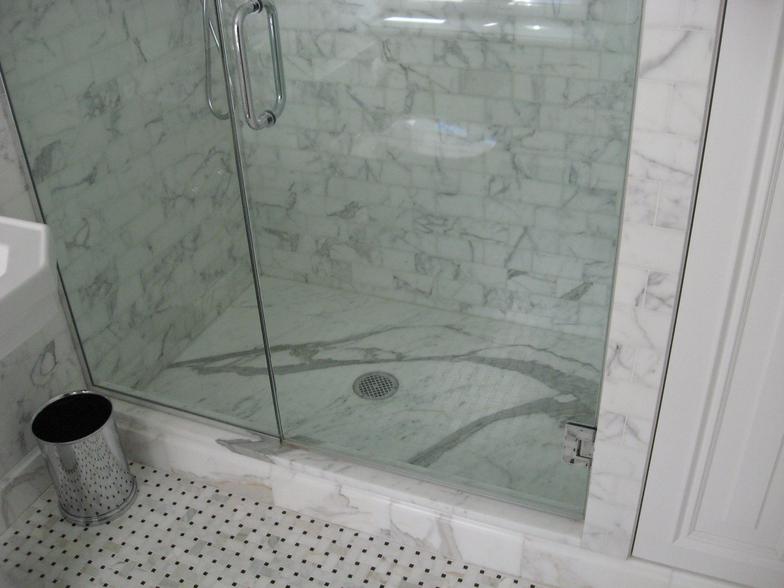

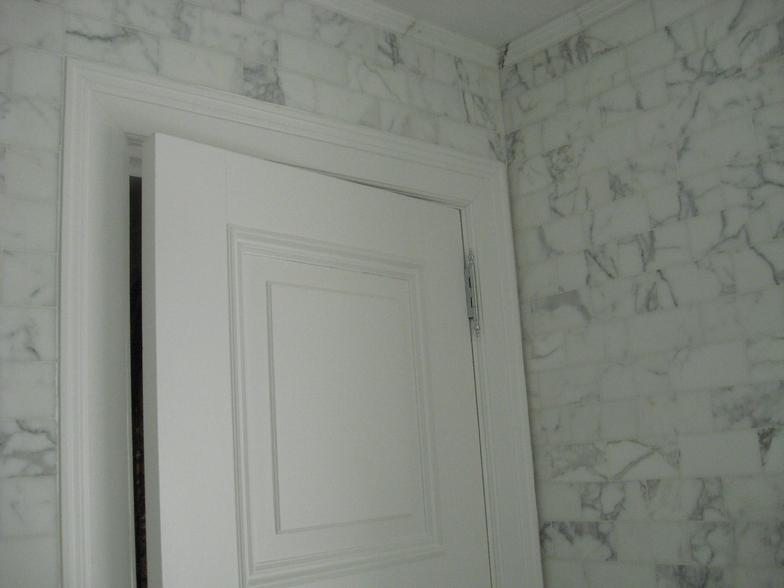

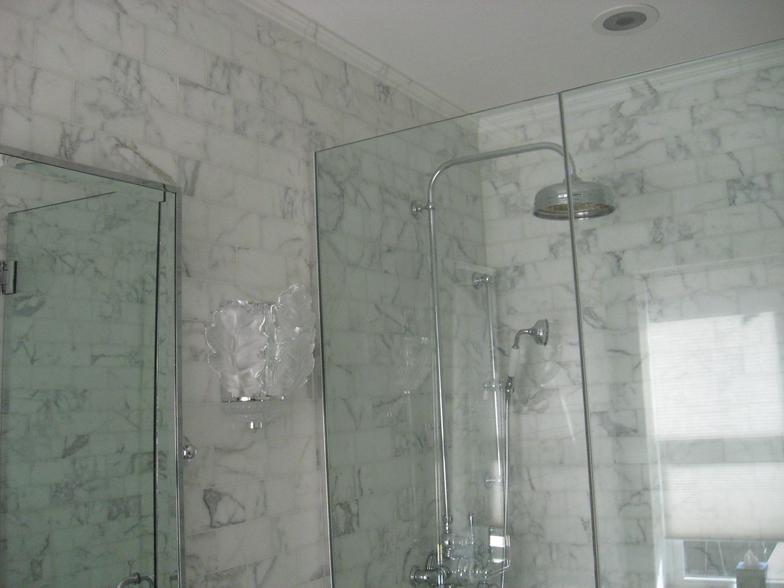

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

Master Bathroom

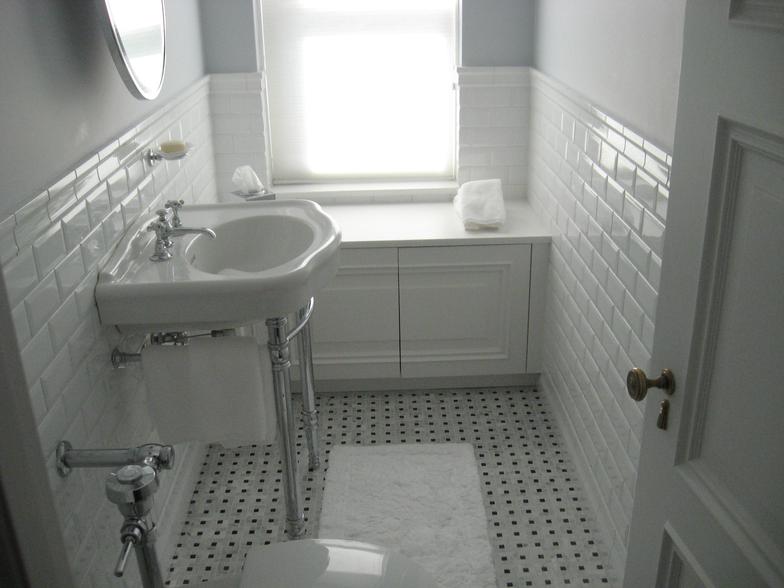

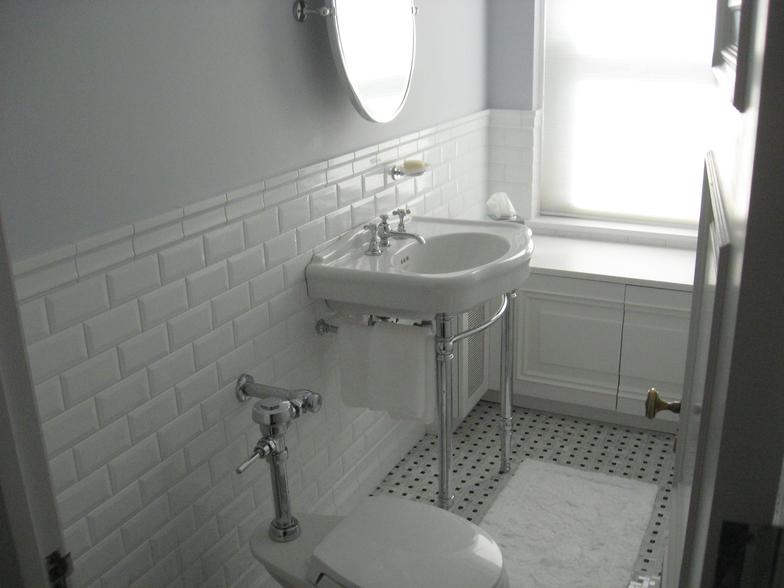

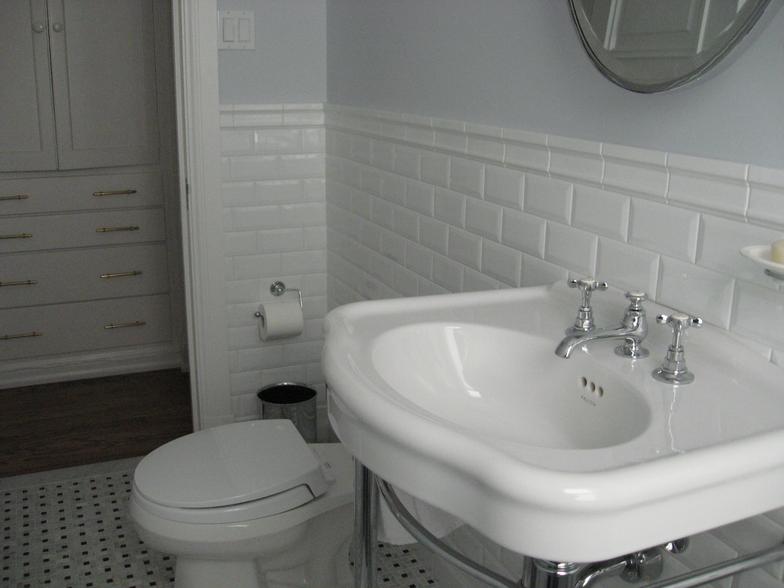

Powder Room

Powder Room

Powder Room

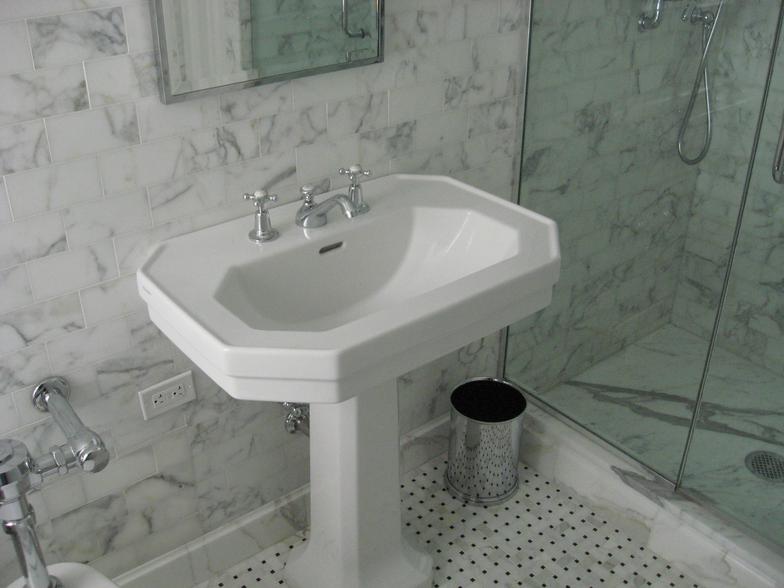

 • Bruha Residence - Master Bathroom and Powder Room remodel
     1540 North Lake Shore Drive, Seventh Floor, Chicago, Illinois (Residential Co-op Building)
• Remodel existing Master Bathroom and Powder Room in 2,755 square foot residence located in
   17-story vintage (1929) building.

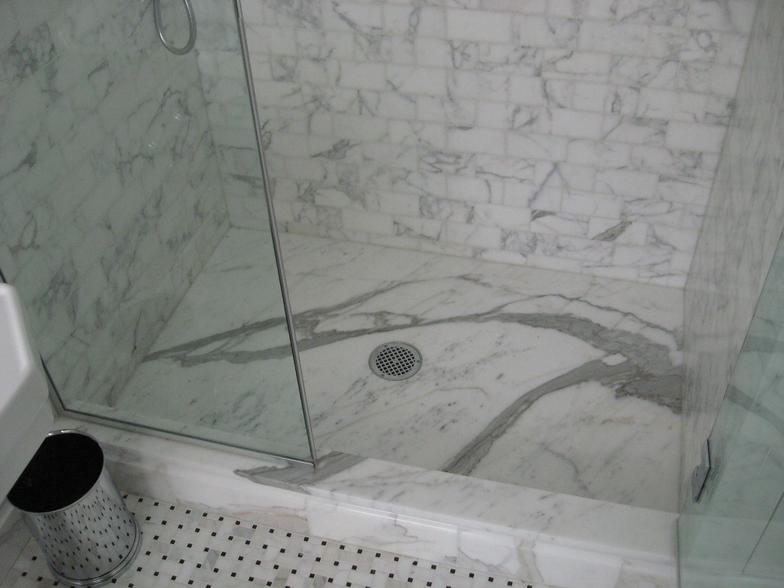

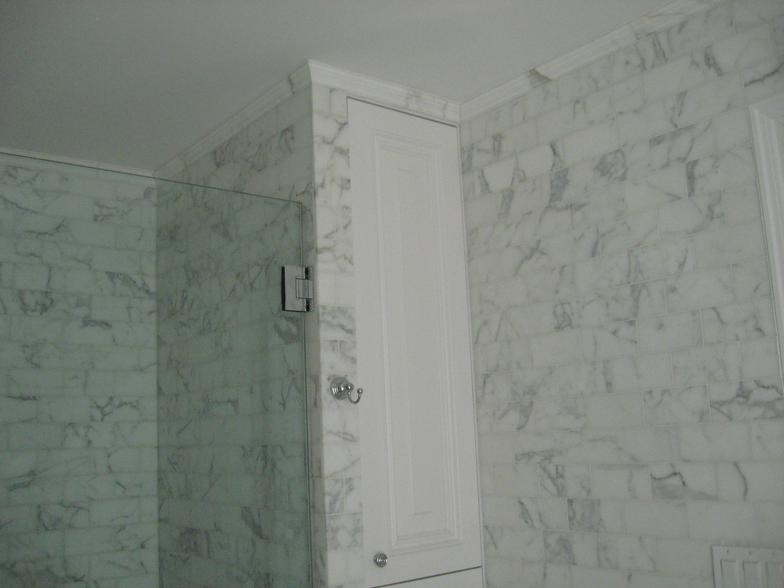

• New custom Master Bathroom with custom cabinets, solid natural stone shower base (monolithic
   one-piece) and natural stone tile at walls, shower enclosure, floor and base. New plumbing fixtures.
   New finishes and new electrical throughout.
• New custom Powder Room with custom cabinets, natural stone floor tile and ceramic wall and
   base tile. New plumbing fixtures. New finishes and new electrical throughout.
• Remodel demolition work includes completely gutting the Master Bathroom and Powder Room.
• Plumbing work includes replacing all plumbing supply piping located in the Master Bathroom and
   Powder Room including distribution piping (branch piping) and building main hot & cold water risers.
Projects

• Banking

• Restaurants

• Mercantile, Business & Retail

• Office & Health Facilities

• Religious

• Residential
        • Condominium Remodel
        • Apartment Buildings
        • Single Family

• Reroofing

• Zoning & Public Way

• Construction Loan Oversight
   Services
        • Condominiums
        • Hotels
        • Commercial & Industrial
        • Miscellaneous

• Property Condition Assessment

• Owner Representation Services

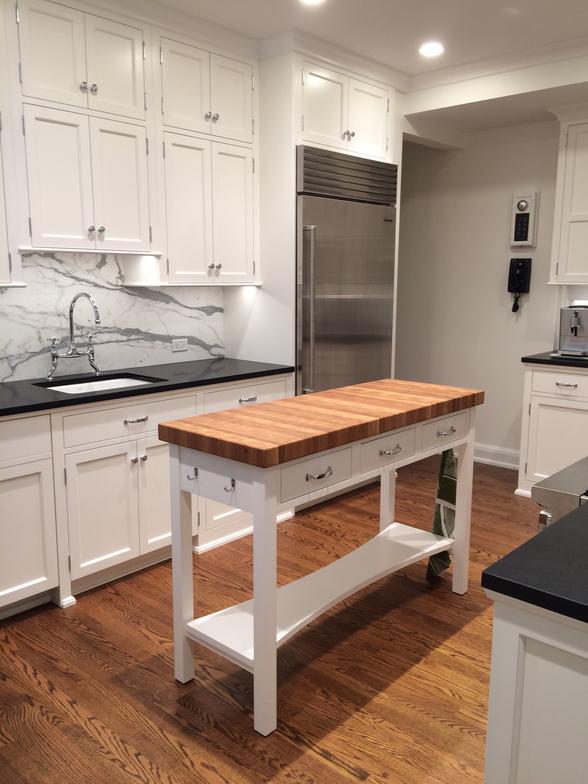

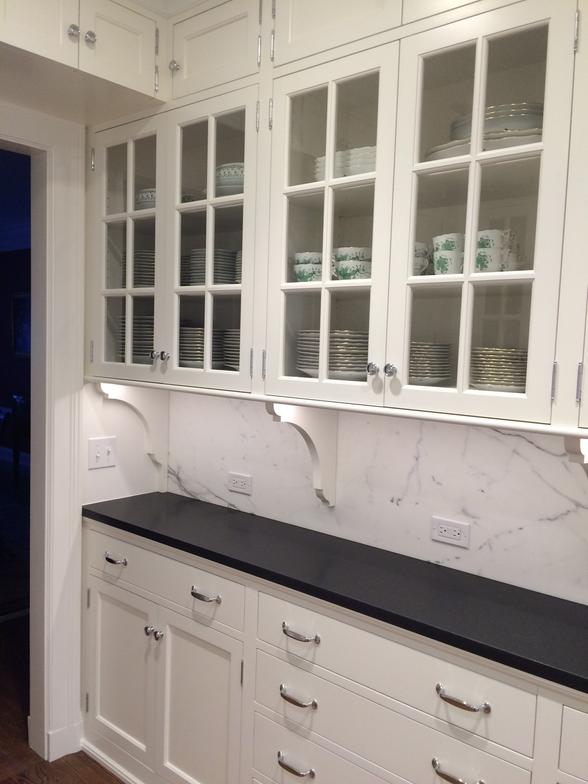

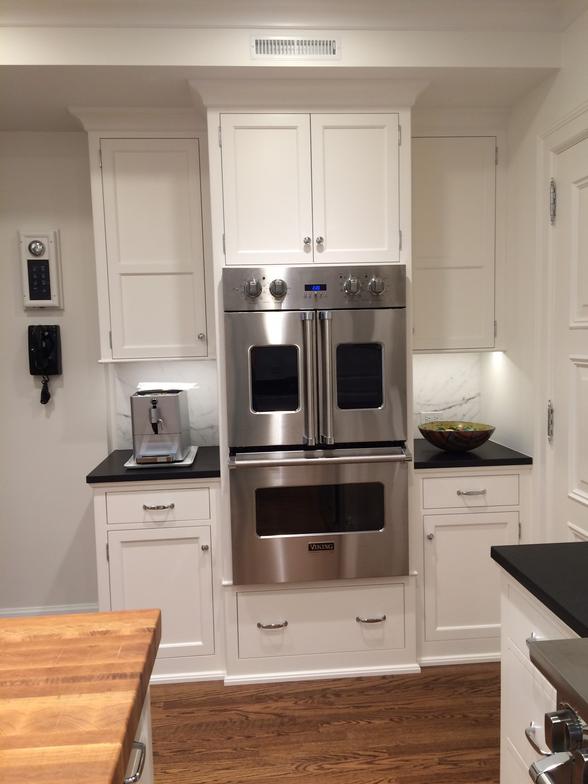

 • Bruha Residence - Kitchen, Butler's Pantry & Guest Bathroom remodel
     1540 North Lake Shore Drive, Seventh Floor, Chicago, Illinois (Residential Co-op Building)
• Remodel existing Kitchen, Butler’s Pantry and Guest Bathroom in 2,755 square foot residence
   located in 17-story vintage (1929) building.

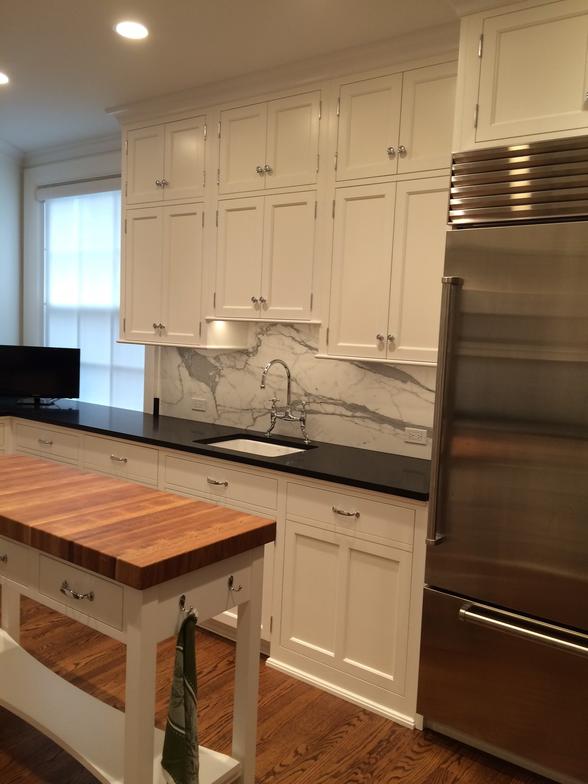

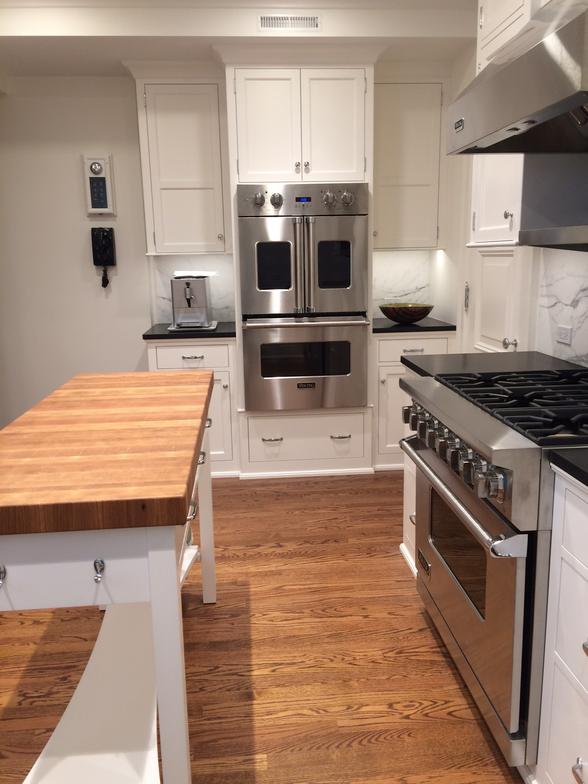

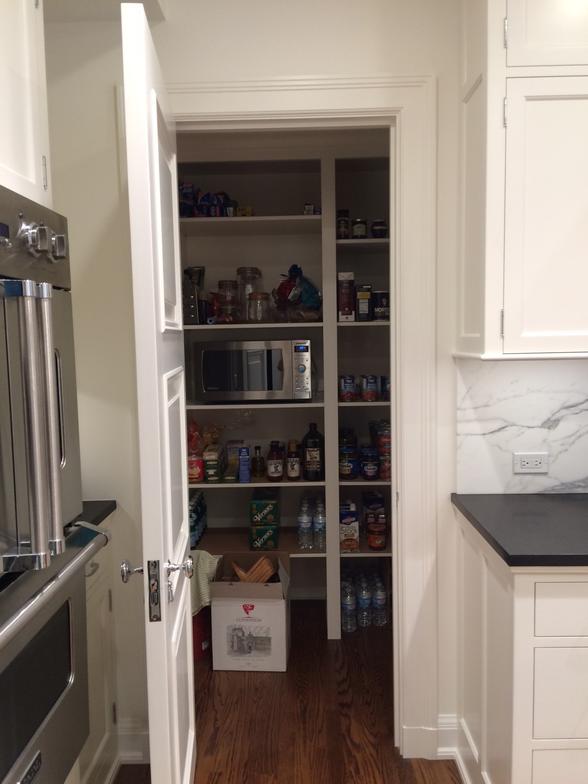

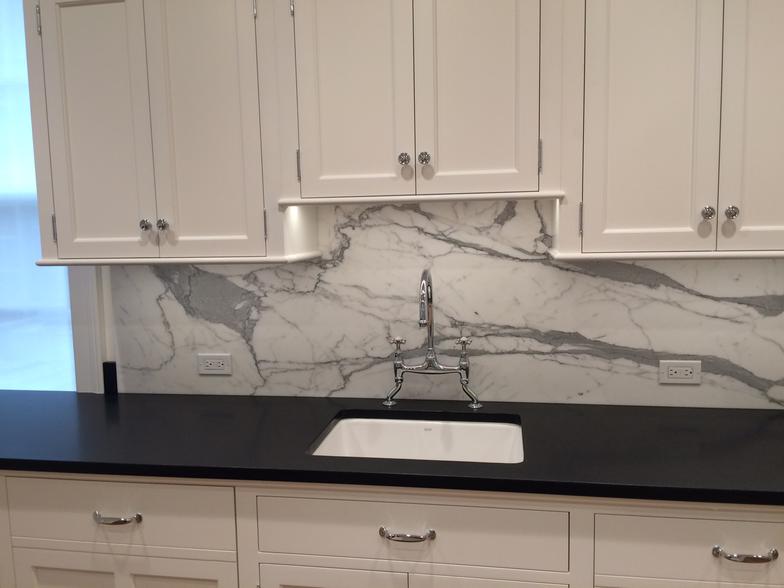

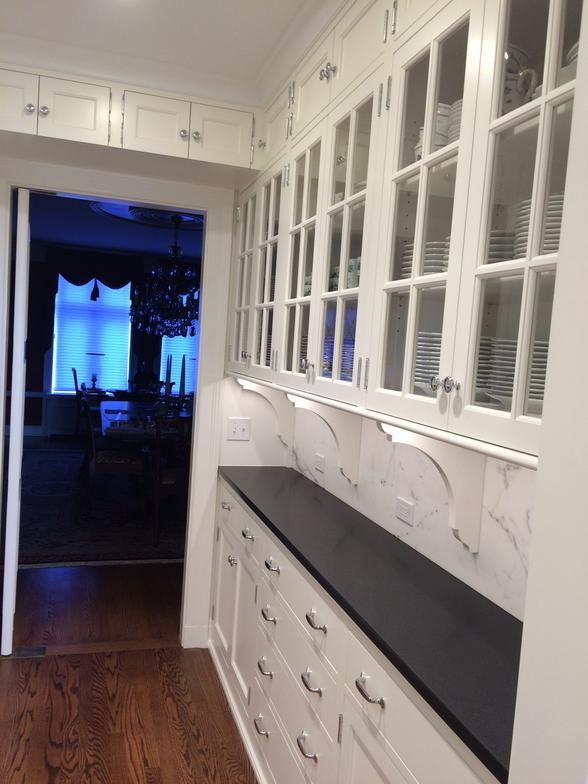

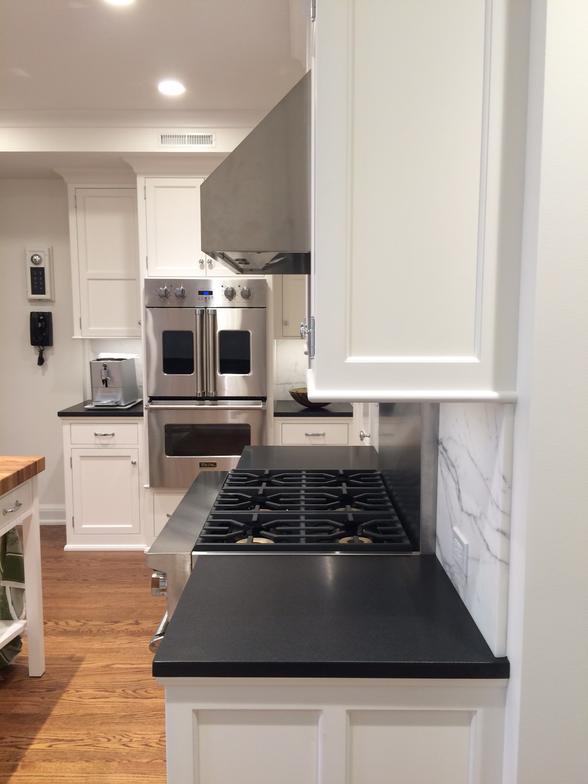

• New custom Kitchen & Butler’s Pantry with custom cabinets, granite countertops (full 1-1/2 inch
   thick slab), marble slab backsplashes, Viking duel-fuel range, Viking wall hood, Viking French
   door double electric oven, Sub-zero refrigerator, Miele dishwasher, Rohl under-mount fireclay
   sink with Perrin & Rowe faucet in kitchen, Waterworks stainless steel farmhouse sink with Lefroy
   Brooks faucet in butler’s pantry, new solid hardwood flooring, new finishes throughout and new
   electrical throughout.

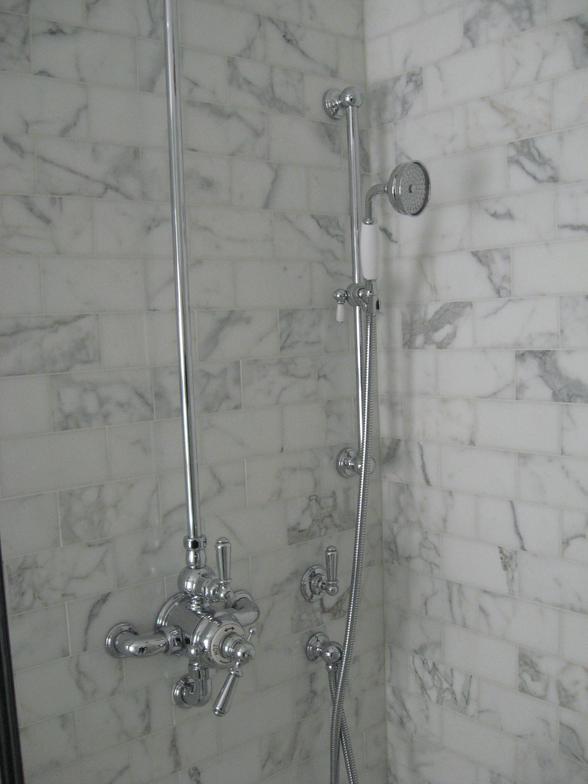

• New custom Guest Bathroom with custom cabinets, solid natural stone shower base (monolithic
   one-piece) and natural stone tile at shower enclosure, floor and base. Perrin & Rowe shower
   mixing valve & head and Rohl hand shower. Urban Archaeology lavatory (top, sink, base) with
   glass legs & Lefroy Brooks faucet. New finishes and new electrical throughout.
• Remodel demolition work includes completely gutting the Kitchen, Butler’s Pantry & Guest
   Bathroom.
• Plumbing work includes replacing all plumbing supply piping located in the Kitchen, Butler’s
   Pantry and Guest Bathroom including distribution piping (branch piping) and building main hot
   & cold water risers.
